Description

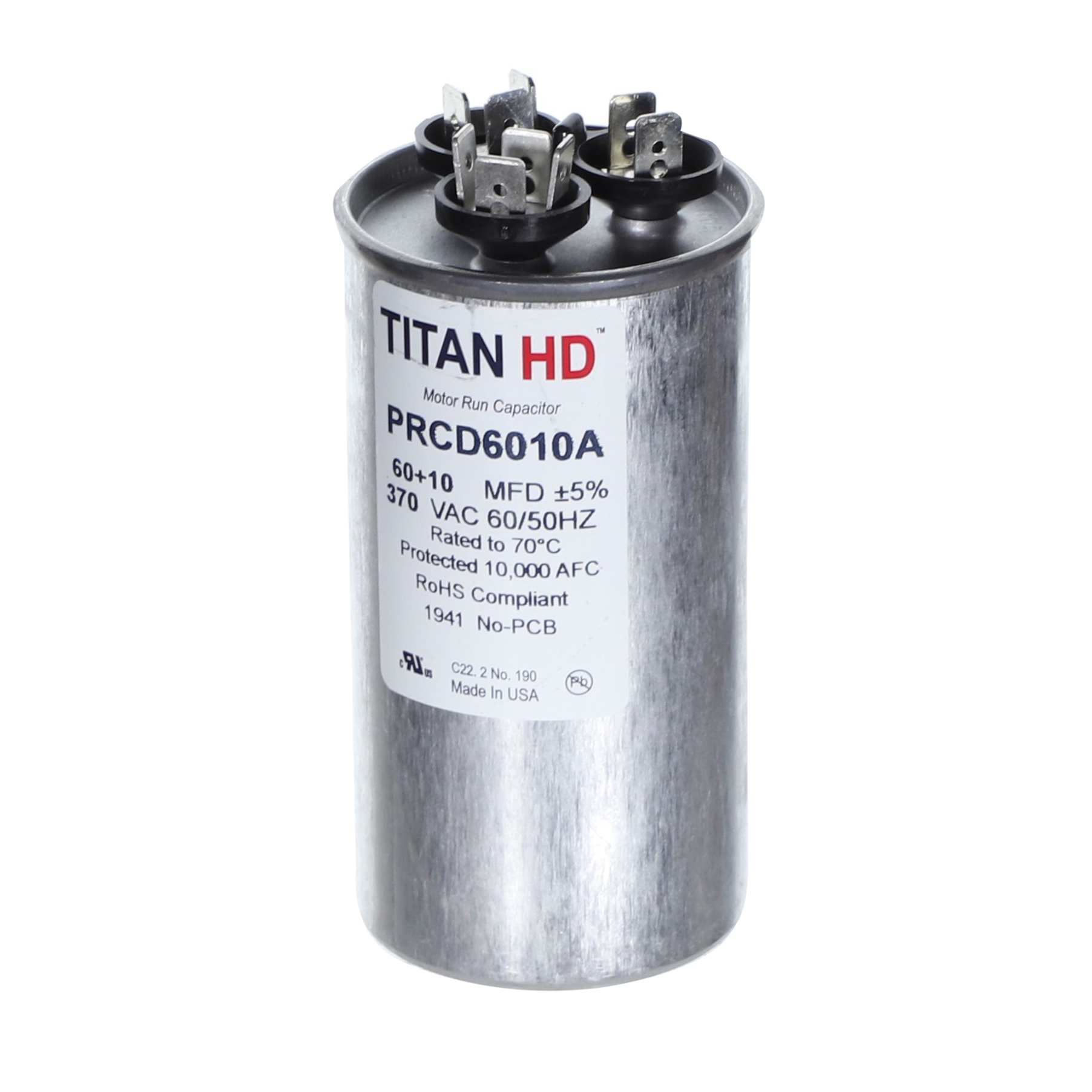

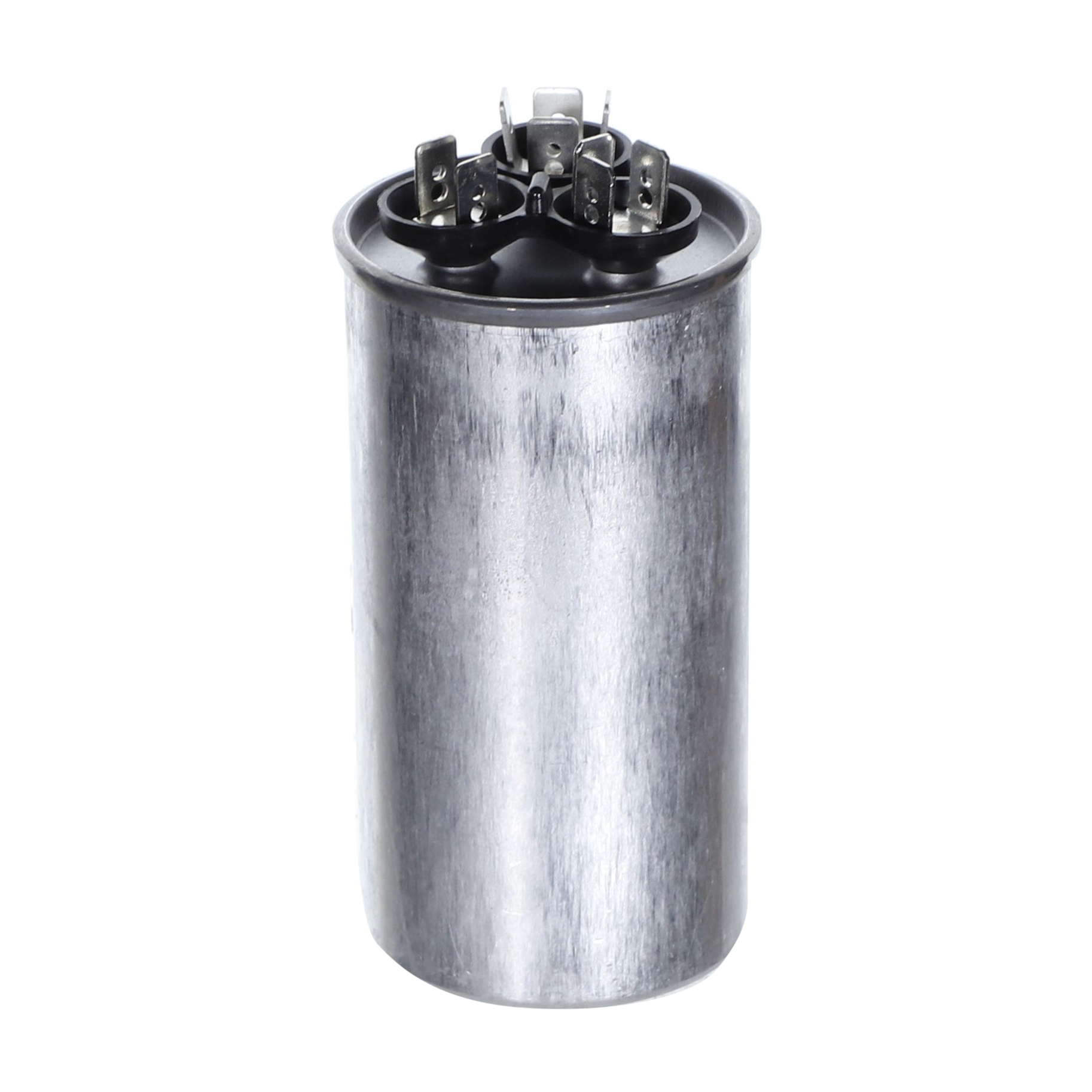

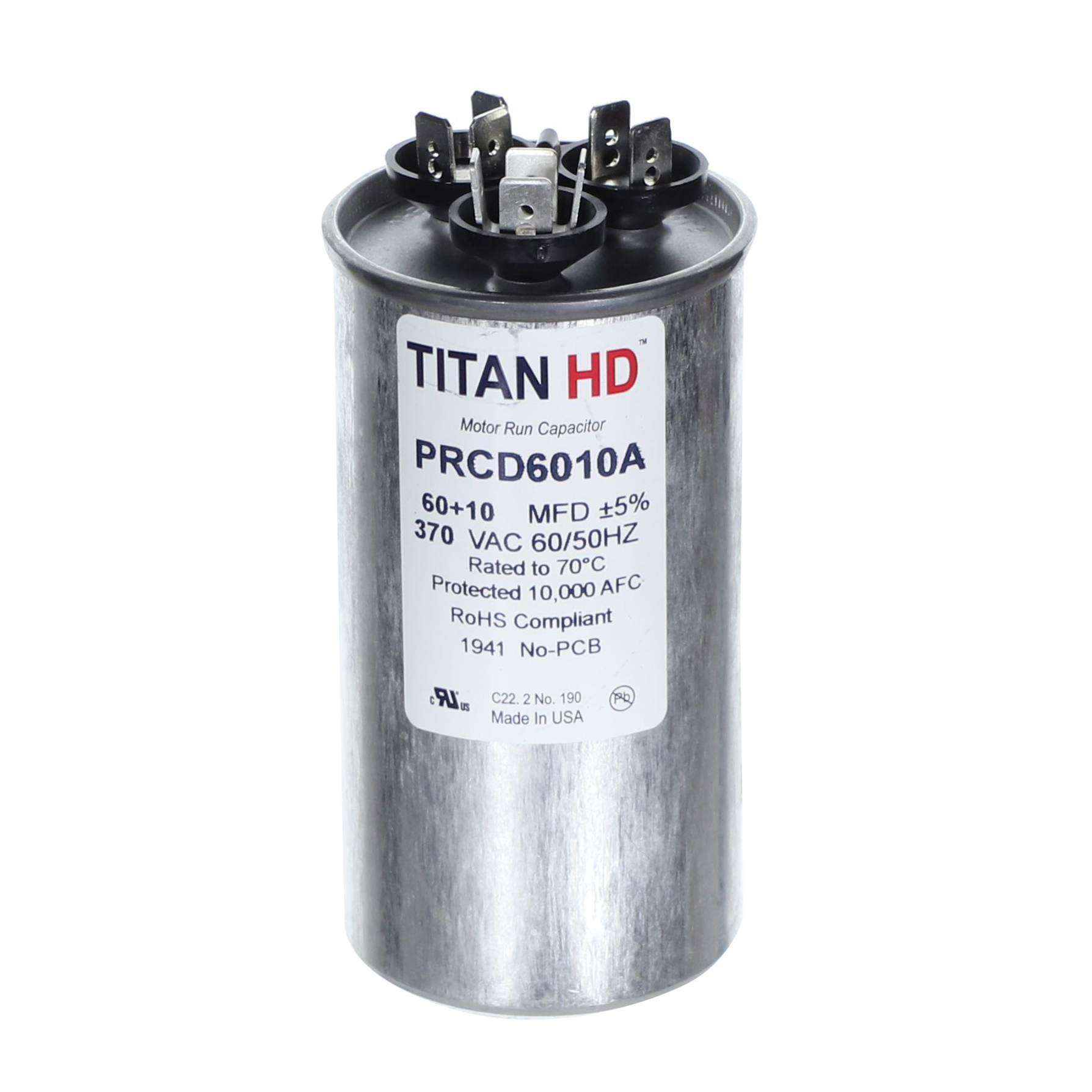

The Packard PRCD6010A is a Titan HD 60+10 MFD, 370V, Round Dual Run Capacitor for HVAC motors and compressors. Titan HD capacitors are proudly Made in USA and engineered for professional-grade reliability with a 60,000-hour operating life, meeting the rigorous EIA-456-A industry standard. The patented, environmentally friendly oil prevents corrosion and optimizes heat transfer, while the UL-approved pressure-sensitive interrupter safely removes the capacitor from the circuit at end of life. This dual-rated capacitor houses two capacitance values in a single unit, powering both the compressor and the fan motor simultaneously – simplifying installation and reducing component count.
Features:
- Made in USA
- Round form factor for standard HVAC mounting
- 60,000-hour rated operating life
- Meets EIA-456-A industry performance standard
- UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal
- Metalized polypropylene film technology – self-restoring
- Patented corrosion-resistant, environmentally friendly dielectric oil
- Dual capacitance powers compressor and fan motor in a single unit
Specifications:
| Capacitance | 60+10 MFD |
| Voltage Rating | 370V |
| Shape | Round |
| Type | Dual Run |
| Operating Life | 60,000 hours |
| Origin | Made in USA |
