Description

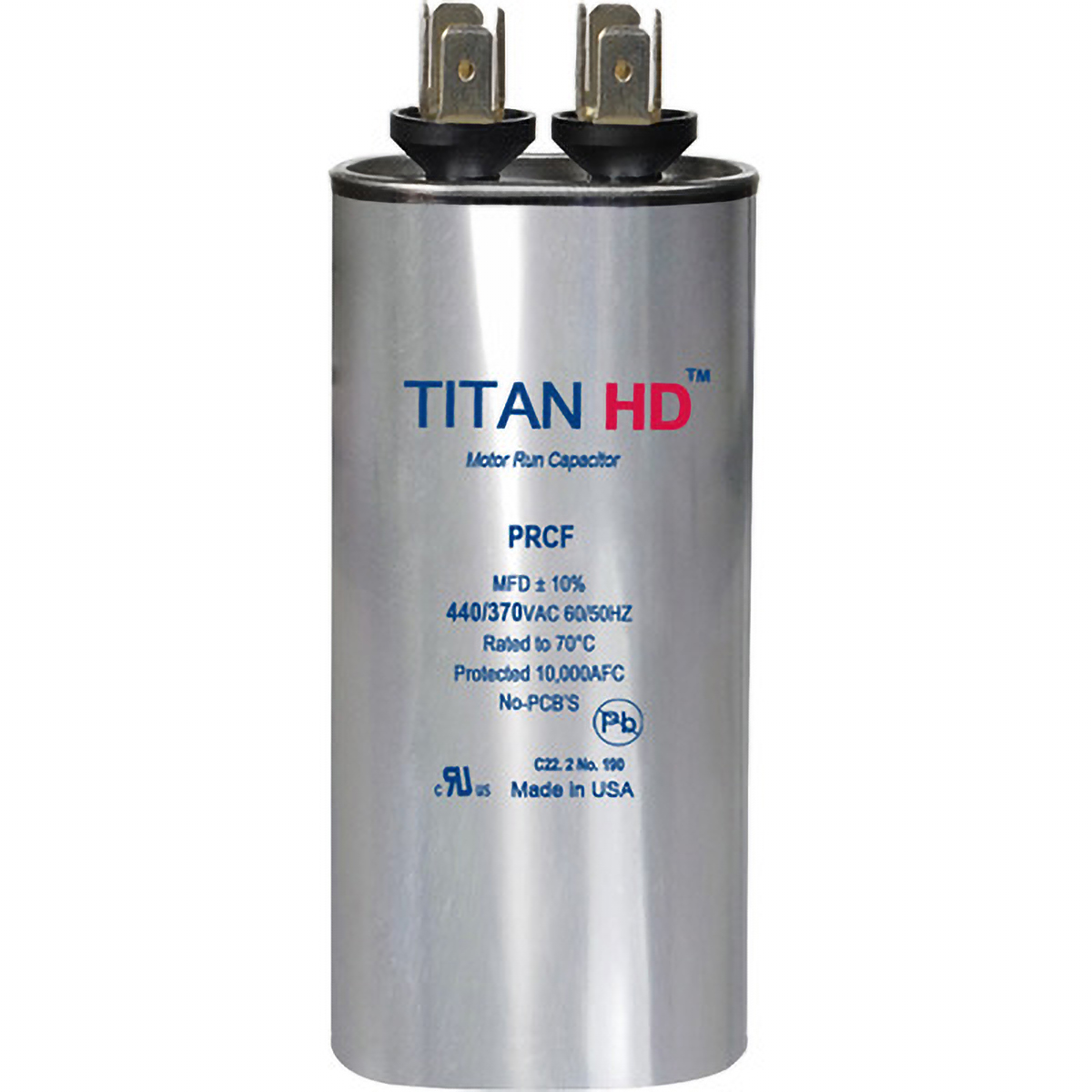

The Packard PRCF30A is a Titan HD 30 MFD, 440/370V, Round Single Run Capacitor for HVAC motors and compressors. Titan HD capacitors are proudly Made in USA and engineered for professional-grade reliability with a 60,000-hour operating life, meeting the rigorous EIA-456-A industry standard. The patented, environmentally friendly oil prevents corrosion and optimizes heat transfer, while the UL-approved pressure-sensitive interrupter safely removes the capacitor from the circuit at end of life. The dual-voltage rating (440/370V) allows this capacitor to replace both 370V and 440V units.
Features:
- Made in USA
- Round form factor for standard HVAC mounting
- 60,000-hour rated operating life
- Meets EIA-456-A industry performance standard
- UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal
- Metalized polypropylene film technology – self-restoring
- Patented corrosion-resistant, environmentally friendly dielectric oil
- Dual-voltage (440/370V) – replaces both voltage ratings
Specifications:
| Capacitance | 30 MFD |
| Voltage Rating | 440/370V |
| Shape | Round |
| Type | Single Run |
| Operating Life | 60,000 hours |
| Origin | Made in USA |
