Description

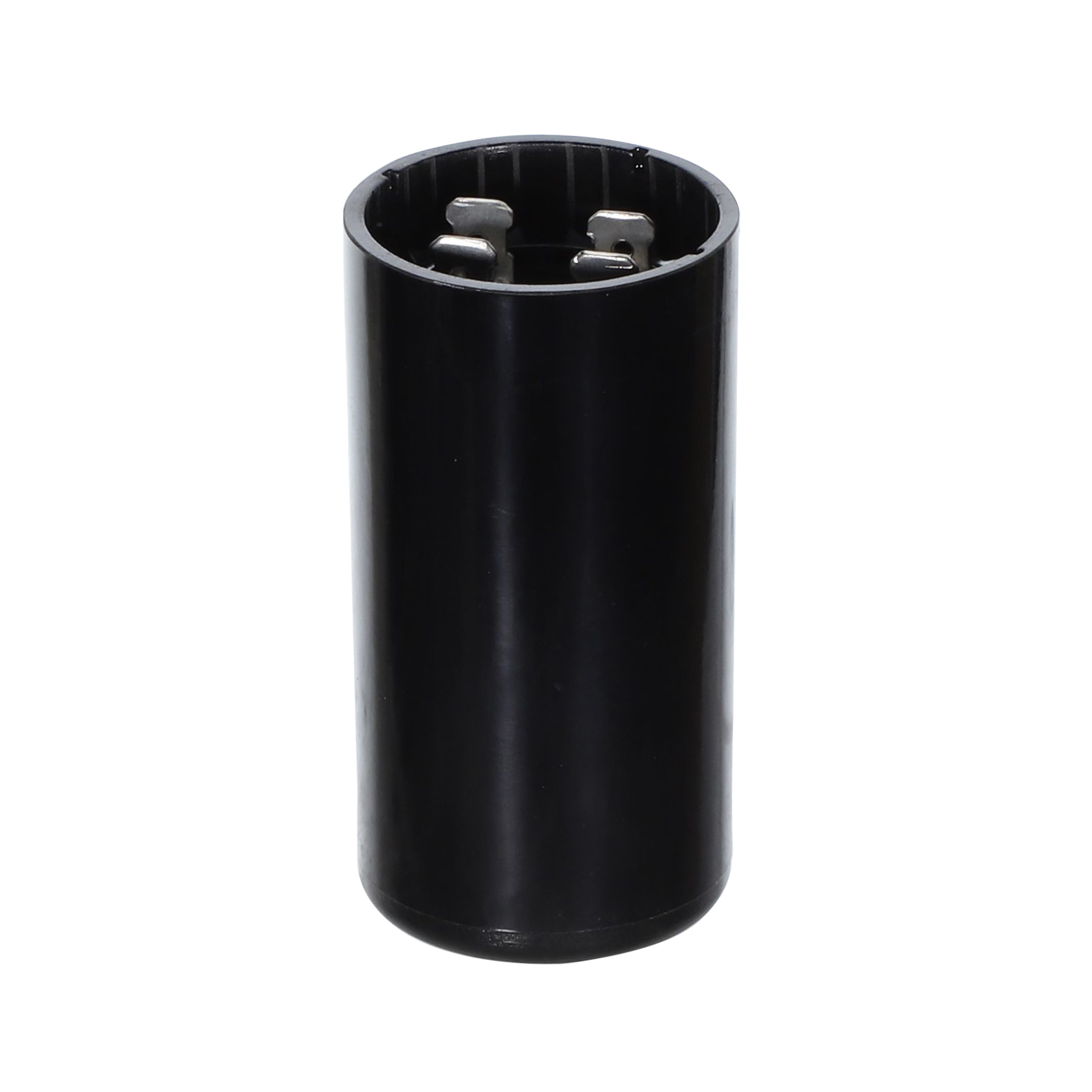

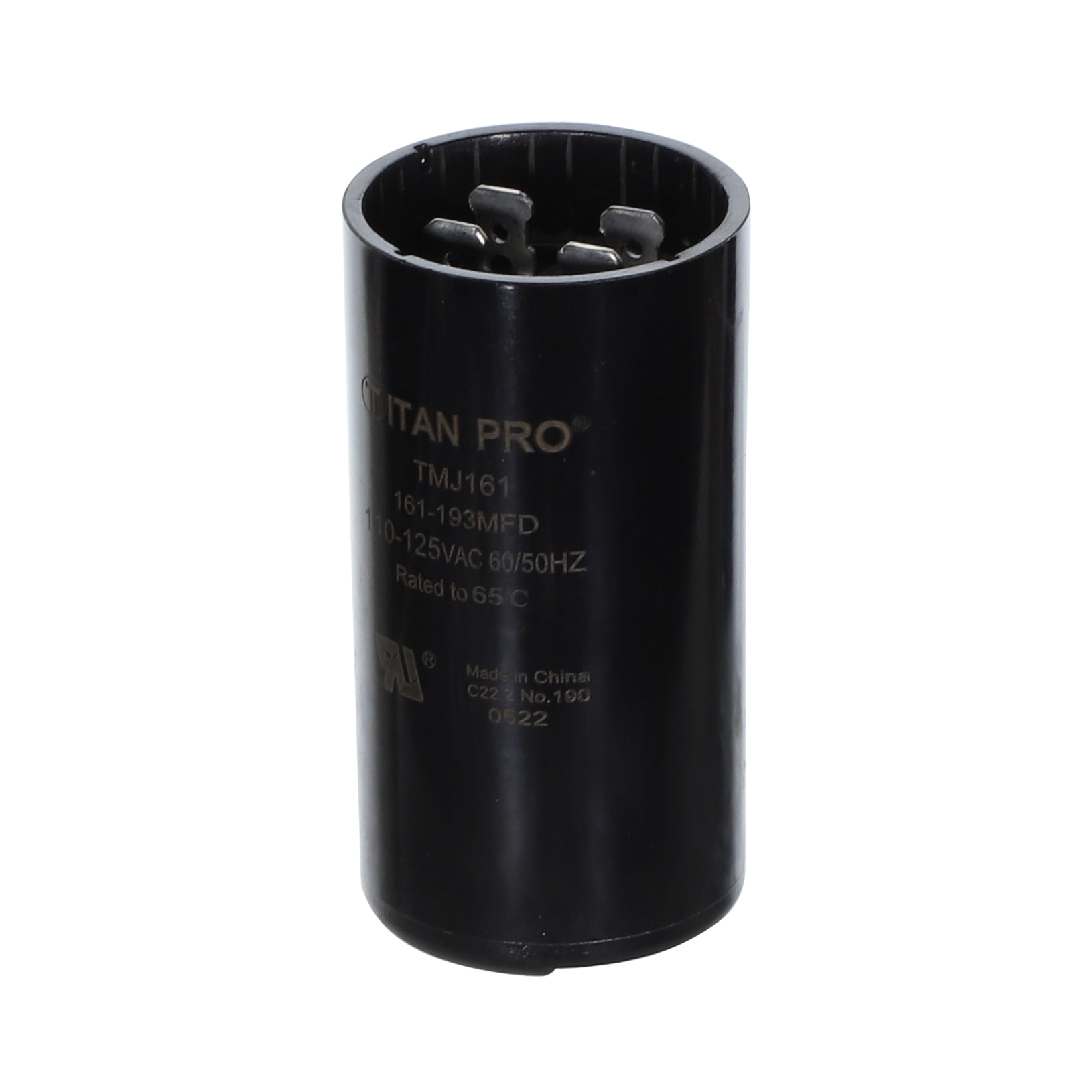

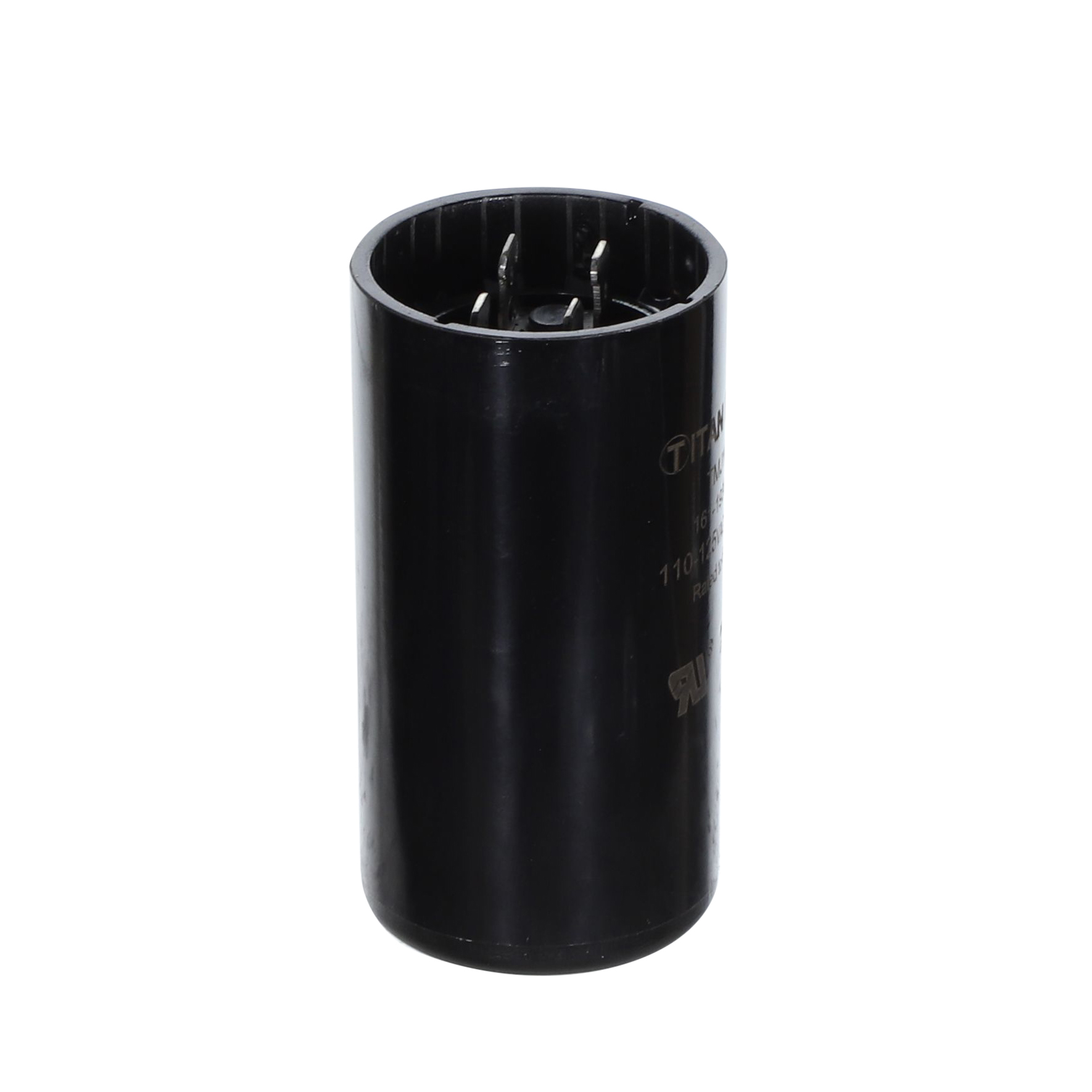

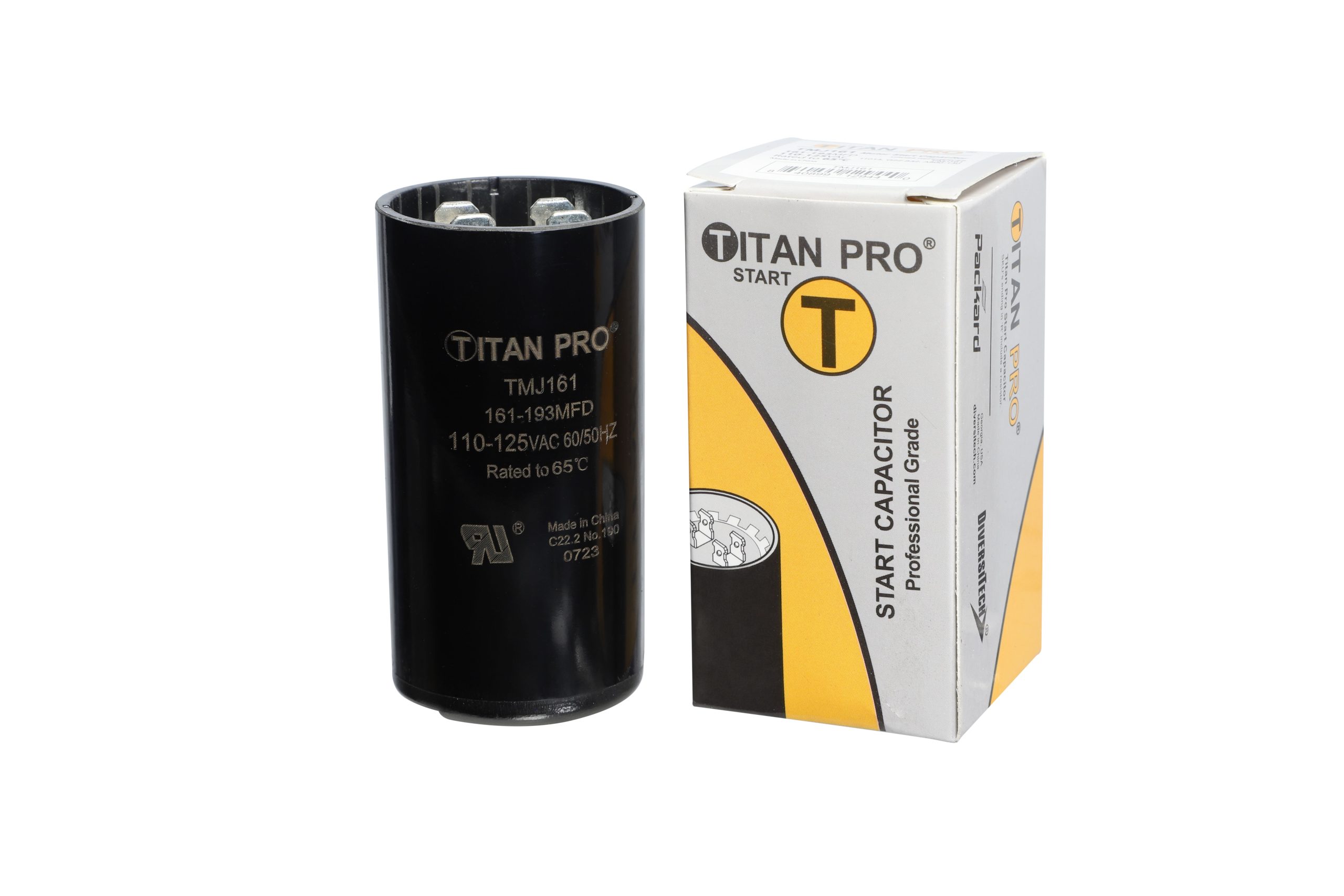

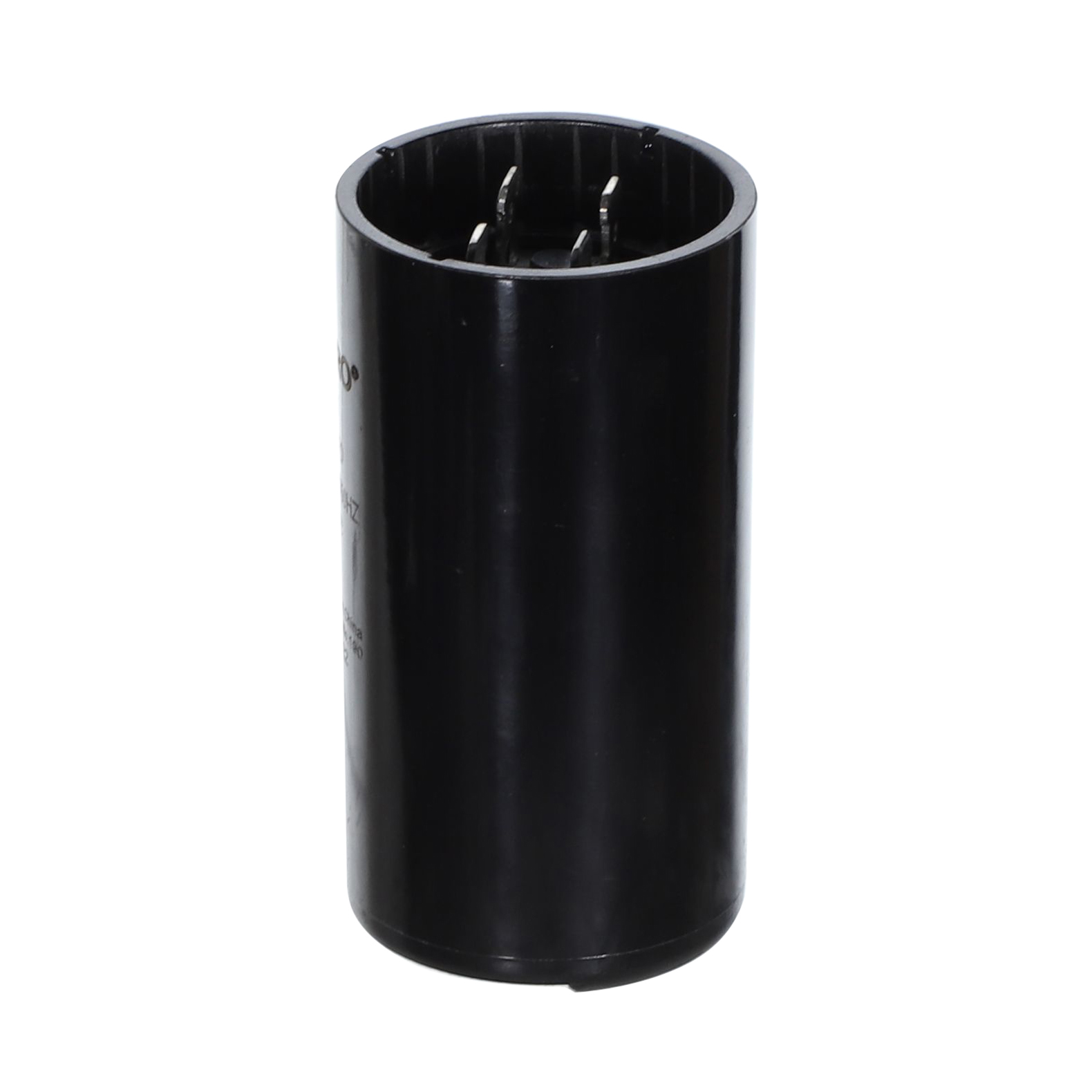

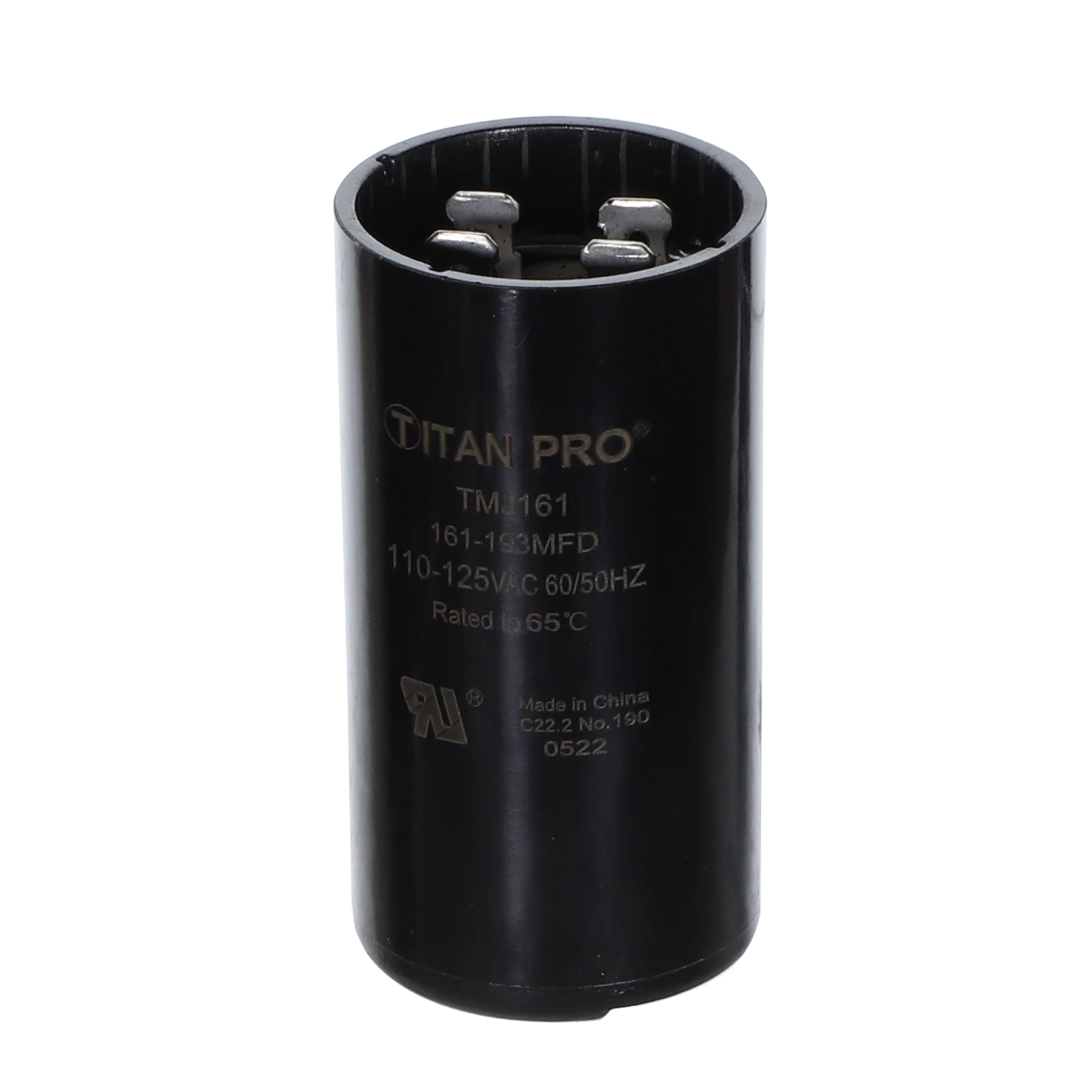

The Packard TMJ161 is a 193 MFD, 110-125V AC Motor Start Capacitor for single-phase HVAC compressors and motors. Start capacitors provide the extra torque needed during motor start-up. Once the motor reaches running speed, the start capacitor is switched out of the circuit by a potential relay or current relay. These capacitors are used in a wide range of residential and commercial HVAC applications.
Features:
- Electrolytic construction for high capacitance in a compact size
- Rated for single-phase AC motor starting applications
- Compatible with potential relays and current relays
- Wide capacitance range for flexible motor matching
Specifications:
| Capacitance | 193 MFD |
| Voltage | 110-125V |
| Type | Start Capacitor |
| Phase | Single Phase |
