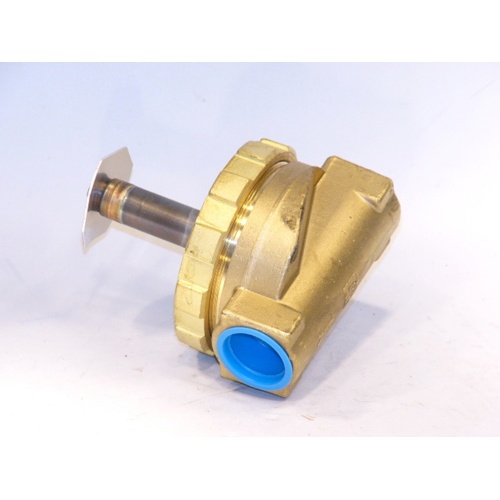

Parker Refrigeration Specialties 70742 Solenoid Valve, 1″ NPT, 120Vac

Description

Parker Refrigeration Specialties 70742 Solenoid Valve Overview

The Parker Refrigeration Specialties 70742 is a heavy-duty, normally closed solenoid valve engineered for reliable refrigerant flow control in commercial and industrial HVAC/R systems. Built with a robust brass body and a 1″ NPT connection, this valve delivers dependable shutoff performance in demanding refrigeration applications.

Key Features

• 1″ NPT inlet/outlet connections for straightforward installation into existing pipework
• Normally closed (NC) operation — valve closes automatically upon power loss for fail-safe system protection
• Brass body construction for excellent corrosion resistance and long service life
• Class H coil rating — designed to withstand high operating temperatures for maximum durability
• 120Vac coil voltage for compatibility with standard commercial electrical systems
• EPR (Ethylene Propylene Rubber) seal material — compatible with a wide range of refrigerants and provides reliable sealing performance
• 1″ orifice size for optimized flow capacity in medium-to-large refrigeration circuits

Application

The Parker 70742 solenoid valve is ideal for use in commercial refrigeration systems, liquid line shutoff, pump-down cycles, and other refrigerant flow control applications where a reliable, normally closed valve is required. The EPR seal material makes it suitable for use with ammonia and other refrigerants that demand chemical-resistant elastomers.

Specifications

• Brand: Parker Refrigeration Specialties
• SKU: 70742
• Connection Size: 1″ NPT
• Body Material: Brass
• Operation: Normally Closed (NC)
• Coil Class: H
• Coil Voltage: 120Vac
• Seal Material: EPR (Ethylene Propylene Rubber)
• Orifice Size: 1″
