Jackson Systems

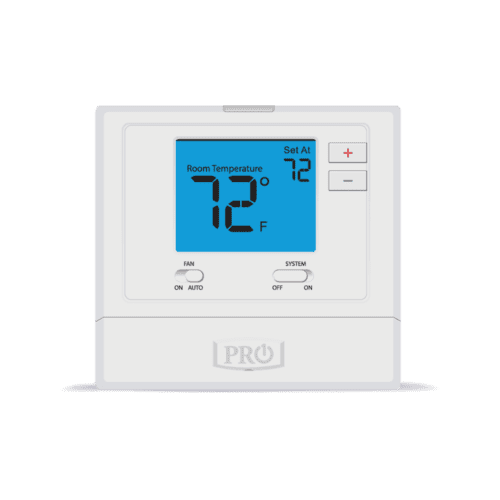

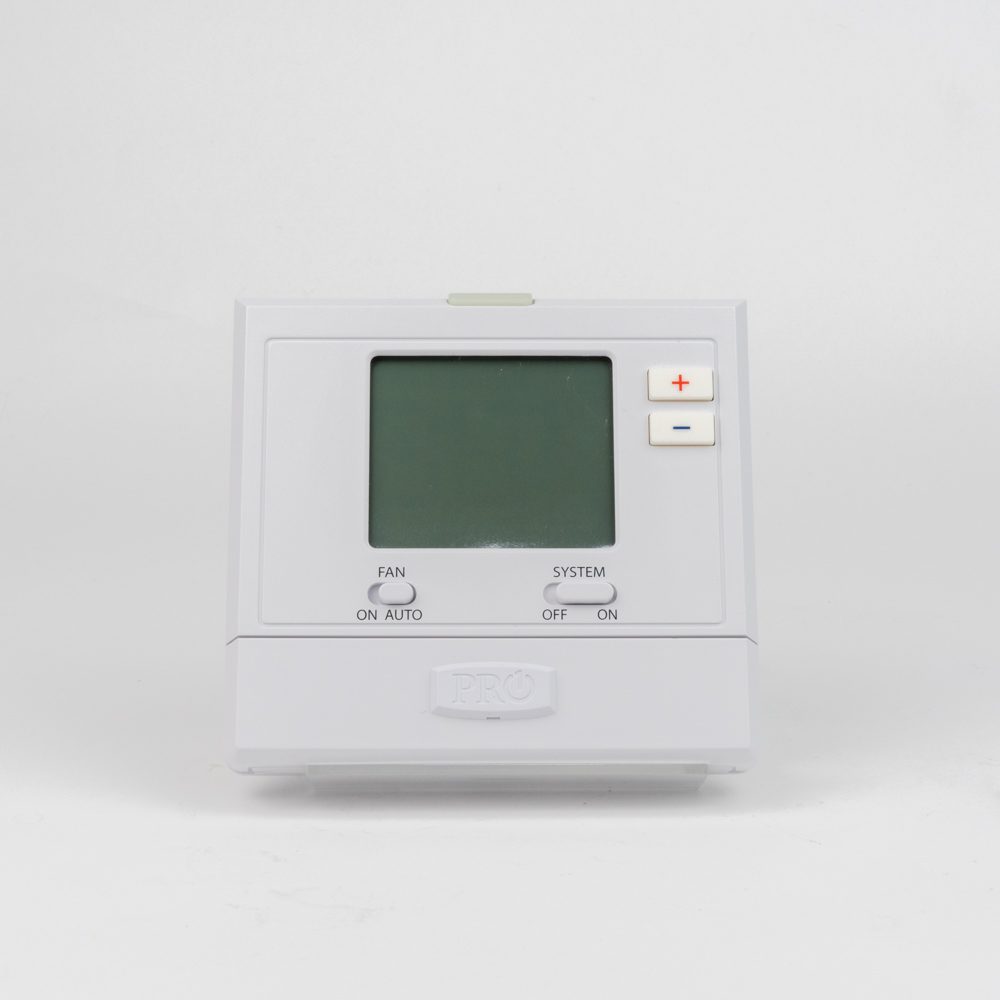

Pro1 IAQ T771 Non-Programmable Heat Only or Cool Only Thermostat

BRAND: Pro1 IAQ SKU: T771

(1 customer review)

$36.63

Non-Programmable Heat Only or Cool Only Thermostat

Availability:

53 In Stock

Description

  • Non-programmable
  • Heat Only or Cool Only applications
  • 4 sq. inch display
  • Blue backlight
  • Glow in the dark light button
  • Easy access battery compartment
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate) adjustments
  • Room temperature calibration adjustment
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 5 year warranty

Features and Benefits

  • Heat Only or Cool Only applications
  • Bright blue backlight
  • Easy access battery compartment
  • Room temperature calibration adjustments
  • Heating and cooling swing cycle adjustments
  • Universal sub-base
  • Hardwired or battery powered
  • 5-year warranty

Additional information

Backlight

Yes

Changeover

Manual

Display

Digital

Filter Monitor

No

Keypad Lockout

No

Mount

Junction Box

Power Type

Battery, Hardwired

Programmability

Non-Programmable

Programmable Fan

No

Remote Inputs

No

Remote Outputs

No

Set Point Limiting

Yes

Stages

Single

Temperature

105°F (41°C) Max, 20°F (-6°C) Min

Terminal C or X

Yes

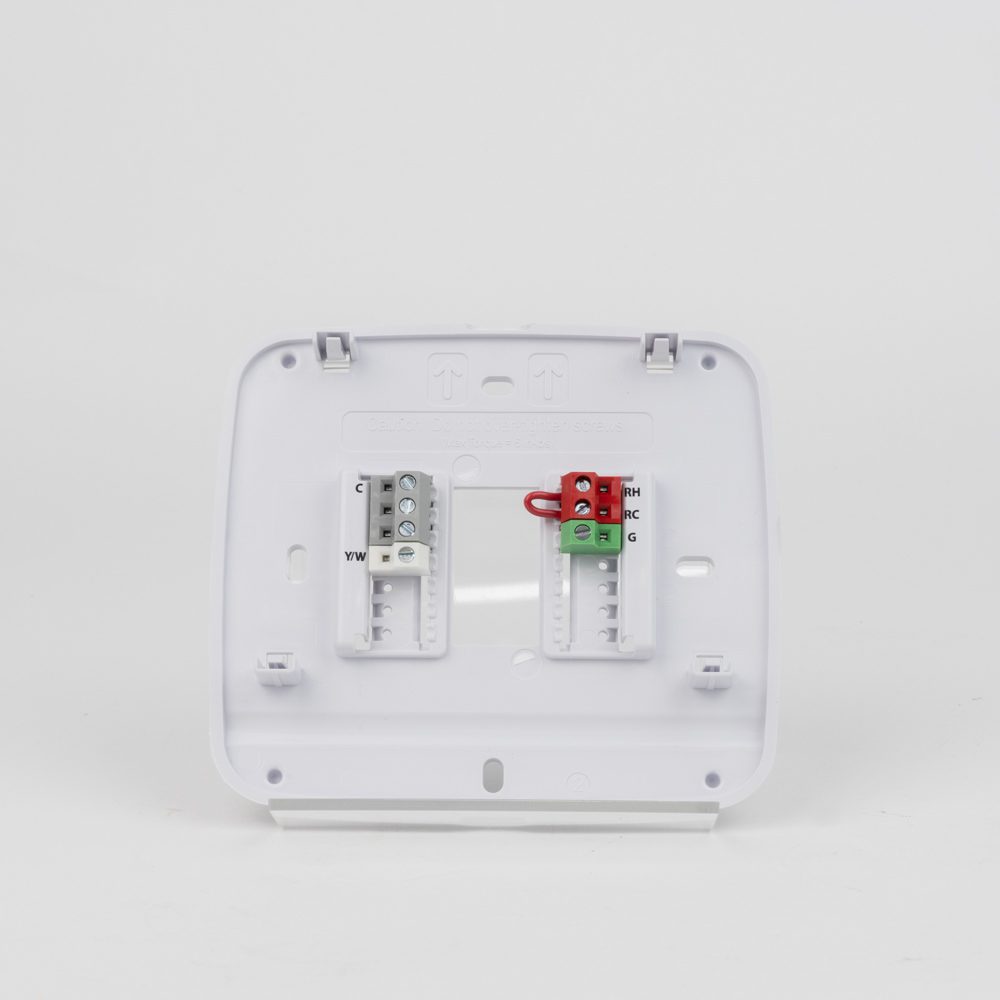

Terminal Designations

C, G, Rh

Terminal E

No

Terminal G

Yes

Terminal O or O/B

No

Terminal W or W1

Yes

Terminal W2

No

Terminal Y or Y1

Yes

Terminal Y2

No

Touchscreen

No

Vacation Hold

No

Voltage

18 to 30V

Warranty

5 years

UPC 689076207119
Imprinting Available Yes

Installation Manual

Owner's Manual
