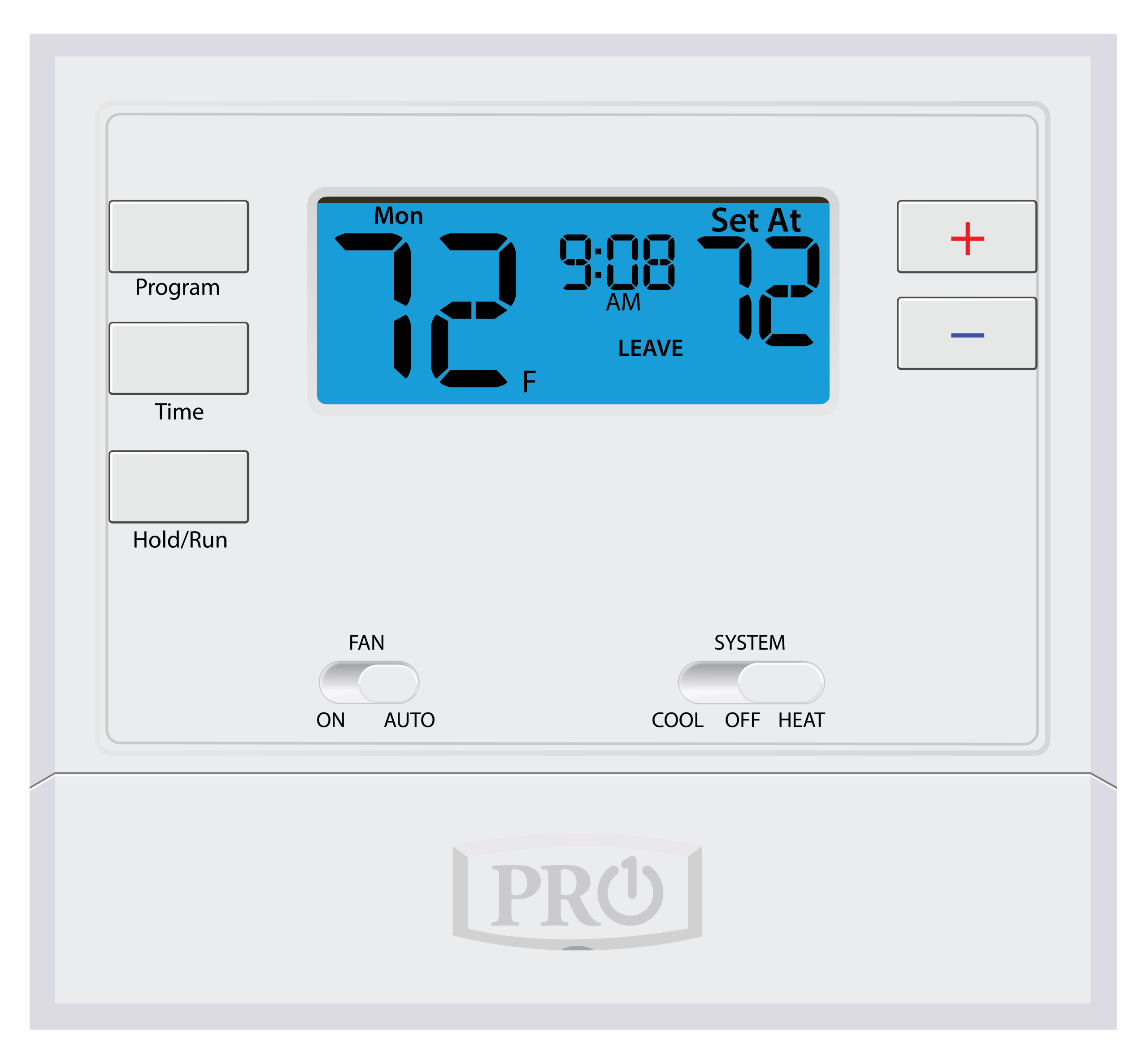

Pro1 IAQ T605-2 Single-Stage Programmable Thermostat, 1H/1C

BRAND: Pro1 IAQ SKU: T605-2

$56.73

MSRP: $90.24
You save 37%

1 Heat / 1 Cool Programmable Thermostat

Free Shipping
Ships Tomorrow
Availability:

6 In Stock

Description

The Pro1 IAQ T605-2 is a single-stage 1 heat/1 cool programmable thermostat that can be either hardwired or battery powered. The T605-2 is a cost-effective thermostat that is easy to install and intuitive to use with 7-day and 5/1/1 programmability

Features
  • 2 sq. inch display
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • Blue backlight
  • Separate B and O terminals
  • Separate heating and cooling swing (cycle rate) adjustments
  • Room temperature calibration adjustments
  • 5 minute compress or delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 2 year warranty

Additional information

Display Temperature

41˚°F to 95˚°F (5˚C to 35˚C)

Control Temperature

44˚F to 90˚F (7˚C to 32˚C)

Load Rating

1 Amp per terminal, 1.5 Amp Max. all terminals combined

Display

+/- 1°F Accuracy

Cycle Rate

Heating is adjustable from 0.2°F to 2.0°F – Cooling is adjustable from 0.2°F to 2.0°F

Power Source

10 to 30 VAC, NEC Class II, 50/60Hz forhardwire (common wire), 2 AA Batteries

Ambient Temperature

32°F to 105°F

Operating Humidity

90% Non-Condensing Maximum

Programmable

7-Day, 5/1/1-Day

Stages

1 Heat / 1 Cool
