Description
Pre-calibrated ethylene oxide replacement sensor module
Some QEL products require a firmware selection or a serial number to identify the correct direct replacement. This is one of those products.
Please contact our team at (317) 788-6800 to purchase.

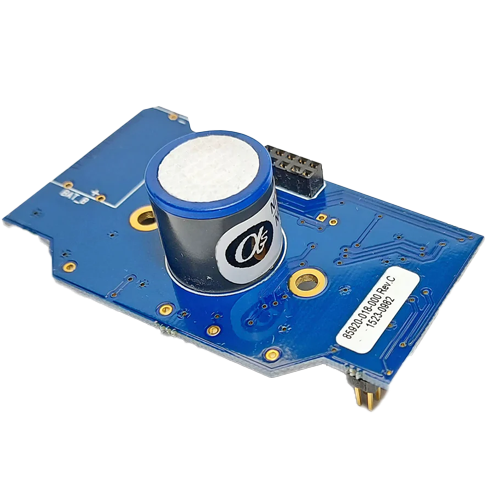

The QEL 85930-018-012 smart sensor assembly lets you refresh an ethylene oxide (EtO) gas detector without replacing the whole transmitter. This factory-calibrated module drops into compatible Q5/B5 EtO transmitters and restores accurate 0–20 ppm monitoring with a simple board swap.
Because the calibration data is stored in the smart sensor assembly itself, you don’t need to fully recalibrate the transmitter after replacement. Once the new module is installed and warmed up, you verify it’s working and put the unit back in service. That makes it especially useful in healthcare, sterilization, and industrial environments where EtO monitoring is required, but shutting down systems for long service windows is difficult.
Key Features or Benefits
Keeps EtO Detectors Working
Designed as a direct replacement for EtO channels in Q5/B5 transmitters, so you reuse the installed device and simply refresh the sensing module.
Factory-Calibrated, Plug-In Design
Supplied as a pre-calibrated smart sensor assembly. Field replacement is typically done by removing a couple of screws, swapping modules, and then testing the unit.
Accurate Low-Level EtO Monitoring
Provides a 0–20 ppm measurement span, matching the ethylene oxide range used by Q5/B5 EtO transmitters for leak detection and exposure control.
Electrochemical Sensing for Toxic Gas
Uses electrochemical sensor technology, as specified for Q5/B5 ethylene oxide options, giving good sensitivity at low ppm levels.
Reduces Recalibration
Calibration constants are stored in the smart sensor board at the factory so replacing the assembly doesn’t require a full transmitter recalibration.
Key Specs
- Gas Type: Ethylene Oxide (EtO)
- Measurement Range: 0–20 ppm
- Sensor Technology: Electrochemical EtO sensor
- Assembly Type: Pre-calibrated smart sensor replacement module
- Compatible Transmitters: QEL Q5/B5 ethylene oxide models
