Description
8-channel 4–20 mA sensor input module for the Q-Controller gas detection system

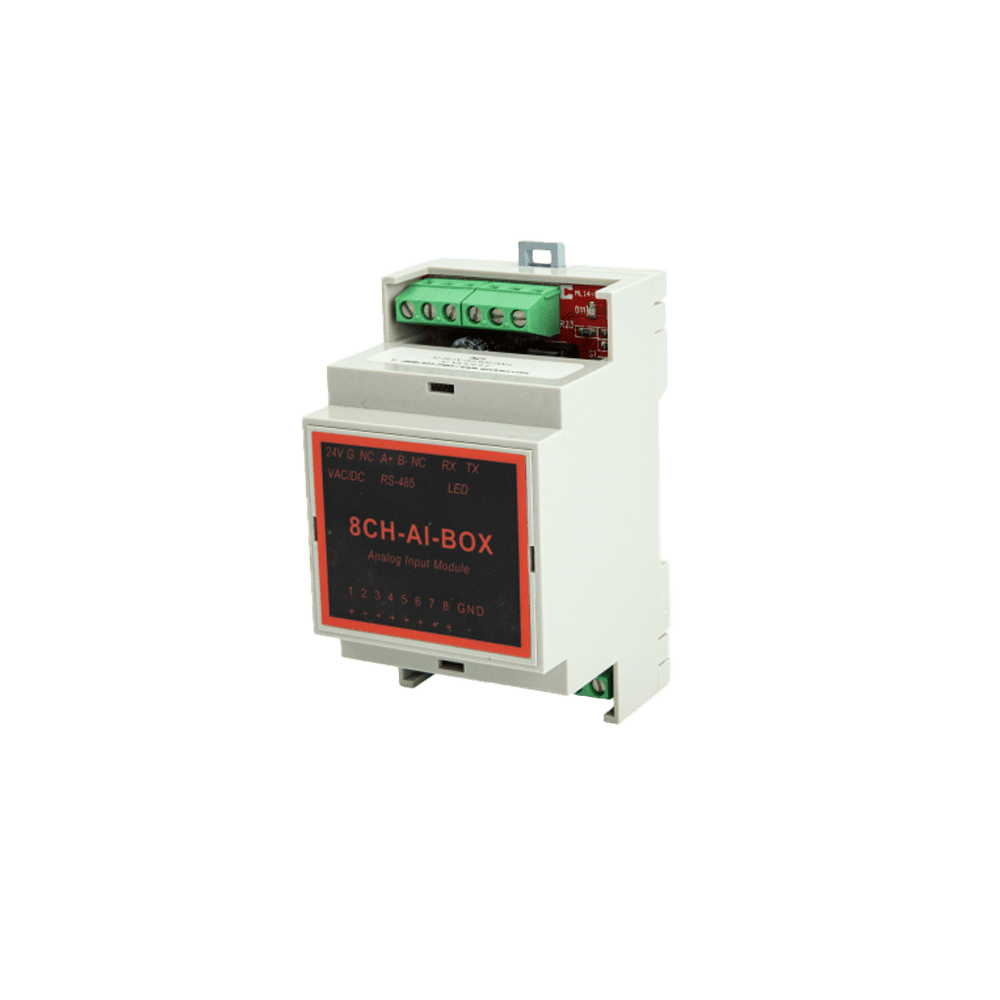

The QEL AI-BOX-0 lets you bring more field sensors into your Q-Controller so everything shows up on the same screen—gas transmitters, pressure sensors, level transmitters, temperature or humidity probes, and other 4–20 mA devices. Each module adds eight additional “sensor points,” so you can expand coverage without adding a separate PLC or data logger.
Designed for high-density signal measurement, the AI-BOX-0 is a good fit for parking garages, plants, and larger facilities where you want more data for alarms, fan control, and trending. Modules connect back to the Q-Controller over the same 2-wire RS-485 network you’re already using, which keeps wiring simple and lets you drop I/O where it makes the most sense.
A single Q-Controller can support up to 16 AI-BOX modules, giving you a total of 128 analog signals on one system—plenty of headroom for future expansion or extra monitoring points you decide to add later.
Key Features & Benefits
Easily Add More Sensors
Each AI-BOX-0 takes in eight 4–20 mA signals, so you can tie in more gas detectors and other industrial sensors without reworking the control design.
Centralized Monitoring and Logging
All readings come back to the Q-Controller, where you can view, alarm, and trend them alongside existing gas points and system relays, instead of juggling separate displays or software.
Scales for Large Facilities
Supports up to 16 AI-BOX modules on one Q-Controller for a total of 128 analog signals, making it suitable for multi-level garages, process areas, or large mechanical rooms.
Simple 2-Wire Network Connection
Communicates with the Q-Controller over a 2-wire RS-485 link, so you can daisy-chain modules on the same field bus and keep installation straightforward.
Panel-Friendly and Serviceable
High-density packaging, DIN-rail mounting, and removable terminal blocks save panel space and make wiring changes faster. Configuration lives in the Q-Controller, while calibration data is stored in the module, so swap-outs are quick.
Notes
- Analog Input Channels: 8 channels, 4–20 mA process signals
- Resolution: 12-bit analog input module
- Max AI-BOX Modules per Q-Controller: 16 modules (up to 128 analog signals)
- Communication: RS-485 2-wire connection to Q-Controller
- Power: 24 VDC nominal (18–30 VDC) or 24 VAC nominal (15–24 VAC, 50/60 Hz), half-wave rectified
- Mounting / Wiring: DIN-rail mounting with removable terminal block, high-density packaging
