Description

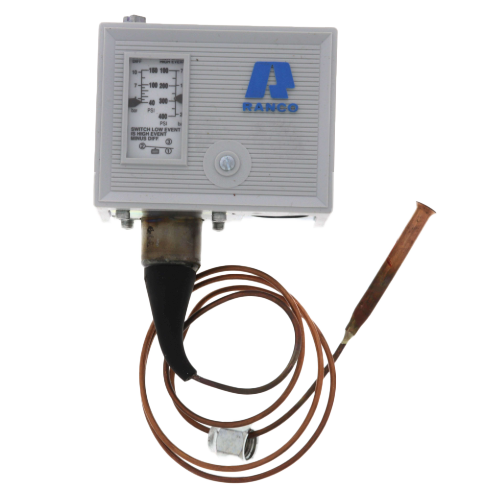

The Ranco 010-2054 Pressure Control is a reliable, versatile solution designed to deliver consistent performance across a wide range of refrigeration and HVAC applications. Engineered with multiple pressure ranges and switch actions, this control offers maximum flexibility, making it a trusted choice for technicians and system installers.
Built with durability and ease of use in mind, the Ranco 010-2054 features a NEMA 1 enclosure with a non-conductive cover, protecting internal components while ensuring safe operation. A front-located captive cover screw allows quick access during installation or service, and the large, easy-to-read scale plate simplifies precise adjustments on the job.
Features:
- Wide pressure ranges and switch actions for flexible use
- NEMA 1 enclosure with a durable, non-conductive cover
- Front-mounted captive cover screw for easy access
- Large, clear scale plate for accurate setting adjustments
- SUPER CAP® capillary protection system to prevent damage
- Compact, universal design for simple installation
- Raised screw terminals for quick, easy wiring
- Laser-welded bellows for extended service life
- Heavy-duty plated steel frame for long-term reliability
- Compatible with R12, R22, and R502 refrigerant systems
Specifications:
- 100 To 400 PSI Range
- 40 To 150 Differential PSI
- SPST Opens Low
- Cap Length 36″
