RectorSeal 97632 Safe-T-Switch SS1 Condensate Overflow Float Switch HVAC

Description

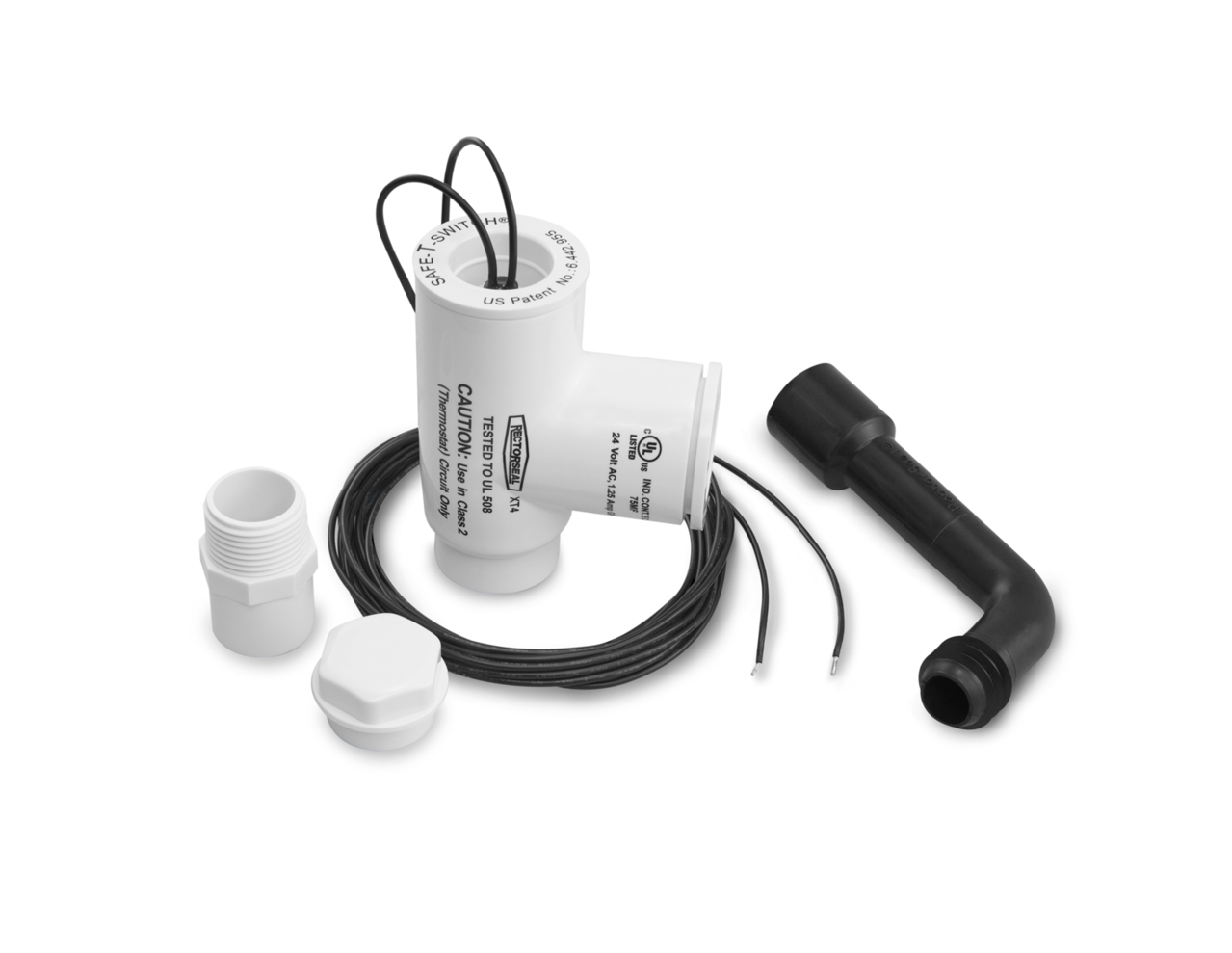

The RectorSeal Safe-T-Switch Model SS1 (part #97632) is a patented inline condensate overflow shutoff switch designed to detect clogged A/C condensate drains and automatically shut off the system before water damage occurs to floors, walls, and ceilings. The SS1 installs vertically or horizontally inline on primary drain lines or on the primary drain pan’s auxiliary outlet using the included 3/4″ adapter, bushing, and cap, and can be mounted on sloping lines up to 45° without needing to be level or plumb, making it one of the most flexible condensate safety switches available. The magnetic reed switch features embedded magnets that won’t fall out, a thicker stem for added durability, and an extended magnet surface area for smoother, more reliable float operation, with a fully adjustable ratcheting activation level to reduce nuisance shutdowns. Rated at 24 VAC maximum at 1.25 amps and UL 508 listed (cULus), the SS1 ships pre-wired with 18 AWG lead wires and includes a directional cleanout tool for code-compliant inline cleanout access. Manufactured by RectorSeal, Houston, TX, the Safe-T-Switch SS1 has 15+ years of proven condensate overflow protection with millions of units in service worldwide.

Features

• Patented Magnetic Reed Switch — Embedded magnets won’t fall out during service, with extended magnet surface area and a thicker stem delivering more reliable float actuation and smoother operation than standard float switches.
• Horizontal or Vertical Installation — Installs inline or on the auxiliary drain outlet in any orientation, on sloping lines up to 45°, without requiring level or plumb mounting — included 3/4″ adapter, bushing, and cap accommodate most standard pipe configurations.
• Adjustable Activation Level — Fully adjustable ratcheting float level with a taller body and longer float shaft allows the trip point to be set higher, reducing nuisance shutdowns while maintaining dependable overflow protection.
• UL 508 Listed — 24V / 1.25A Rated — cULus listed to UL 508 industrial control equipment standard; rated for 24 VAC at 1.25 amps maximum, compatible with standard low-voltage HVAC control circuits on both red and yellow wire connections.
• Directional Cleanout Tool Included — Factory-included cleanout tool provides code-compliant inline drain line cleanout access without removing the switch, simplifying future service calls and reducing maintenance time.
