Description

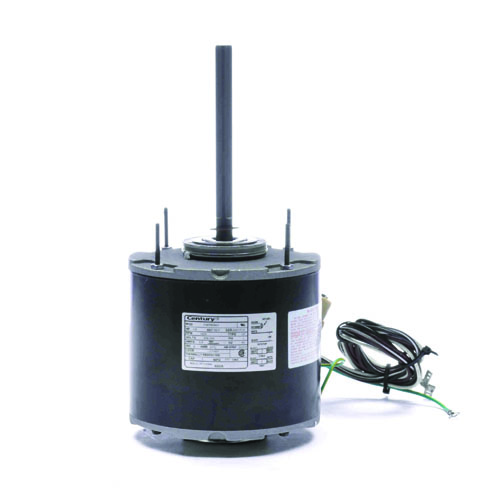

The Regal 666A condenser fan motor is engineered for dependable performance in outdoor HVAC condenser units and air-moving applications. With a robust 1/2 HP output and 208-230 VAC single-phase power, this permanent split capacitor (PSC) motor delivers reliable airflow to support efficient heat rejection. Designed with a F48Y frame, semi-enclosed air-over construction, and a 1/2" diameter shaft, it offers durable operation and easy integration into compatible systems. Reversible rotation and extended stud mounting add versatility for service and replacement applications. Built with sleeve bearings for quiet operation and long life, the 666A motor is ideal for residential and light commercial condenser fan duties.
Key Features:
-
1/2 HP motor output for condenser fan applications
-
208-230 VAC single-phase electrical operation
-
1625 RPM speed with 1-speed design
-
Permanent split capacitor (PSC) motor for reliable performance
-
F48Y frame size with semi-enclosed air over construction
-
Sleeve bearing design for quieter operation and longevity
-
1/2" diameter shaft for standard mounting
-
Reversible rotation for flexible installation
-
Extended studs mounting configuration
