Description

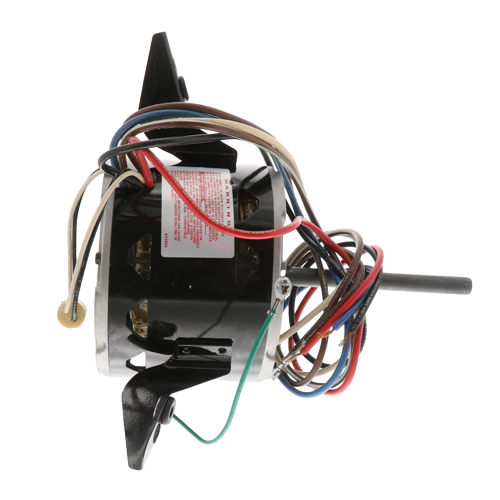

The Regal 9431A permanent split capacitor (PSC) motor is designed for dependable and flexible performance in HVAC blower, fan, and air‑moving applications. Built for 277 VAC single‑phase electrical operation, this motor offers three selectable horsepower options—1/6, 1/8, and 1/10 HP—to match varying system demands. With a 1075 RPM speed and three‑speed control, the 9431A delivers efficient airflow and adjustable performance. Its open air construction and F48Y NEMA frame support effective cooling, while the sleeve bearing design ensures quiet, long‑lasting operation. Featuring Fleximount configuration, a 1/2″ x 5 1/2″ shaft, and reversible rotation, this motor provides versatile installation in residential and light commercial HVAC systems.
Key Features:
-
Multiple HP options: 1/6, 1/8, and 1/10 HP
-
Designed for 277 VAC single‑phase electrical operation
-
1075 RPM speed with 3‑speed selection for adjustable airflow
-
Permanent Split Capacitor (PSC) design for reliable performance
-
F48Y NEMA frame size with open air construction
-
Sleeve bearing for smooth, quiet, long‑lasting operation
-
Fleximount for easier installation
-
1/2″ x 5 1/2″ shaft for versatile mounting
-
Reversible rotation for flexible application
