Description

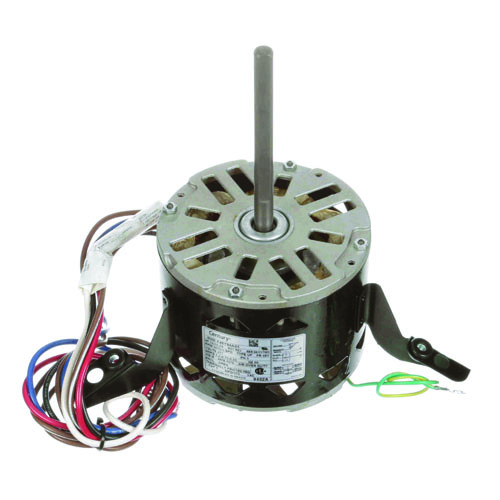

The Regal 9432A permanent split capacitor (PSC) motor is engineered for versatile and dependable performance in HVAC blower, fan, and air-moving applications. Designed for 277 VAC single-phase power, this motor offers three selectable speeds with horsepower options of 1/4, 1/6, and 1/8 HP to match varying airflow requirements. Its open air construction and 48Y NEMA frame allow efficient cooling during operation, while the sleeve bearing design ensures quiet, long-lasting performance. Featuring a 1/2" x 5 1/2" shaft and reversible rotation, the 9432A motor provides flexible installation options. The Fleximount configuration simplifies mounting and serviceability.
Key Features:
-
Available in 1/4, 1/6, and 1/8 HP configurations
-
Designed for 277 VAC single-phase electrical operation
-
1075 RPM speed with 3-speed selection
-
Permanent Split Capacitor (PSC) design for efficient performance
-
48Y NEMA frame size with open air construction
-
Sleeve bearing design for quiet and durable operation
-
1/2" x 5 1/2" shaft for versatile mounting
-
Reversible rotation for application flexibility
-
Fleximount for easy installation and service
