Description

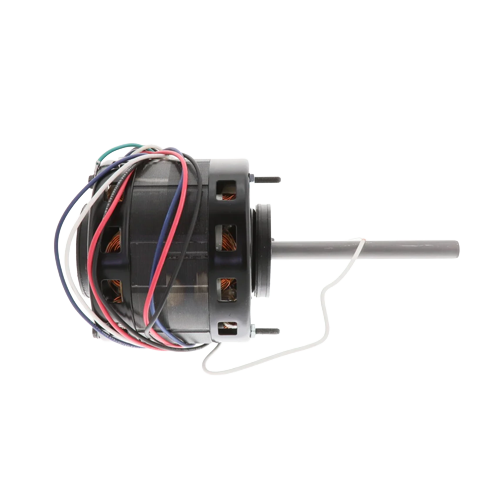

The Regal BL6414 shaded pole motor is a versatile replacement motor designed for HVAC, appliance, and light industrial applications. Delivering 1/5 to 1/10 HP at 1050 RPM with three-speed control, this motor operates on 115 Vac single phase power for reliable performance. Its 42Y NEMA frame and open air design provide proper ventilation, while the sleeve bearing construction ensures smooth and quiet operation. The 1/2″ x 5 1/2″ shaft and CCW lead end rotation make it compatible with standard equipment installations.
Key Features:
-
1/5–1/10 HP shaded pole motor for HVAC, appliance, and light industrial applications
-
Operates on 115 Vac, single phase power
-
1050 RPM with 3-speed operation for adjustable airflow
-
Amperage ratings of 6.5, 4.0, and 3.0 amps for efficient performance
-
42Y NEMA frame size for standard mounting compatibility
-
Open air enclosure for effective ventilation
-
Sleeve bearing construction for smooth, quiet operation
-
1/2″ x 5 1/2″ shaft for secure fit
-
CCW lead end rotation for equipment compatibility
