Description

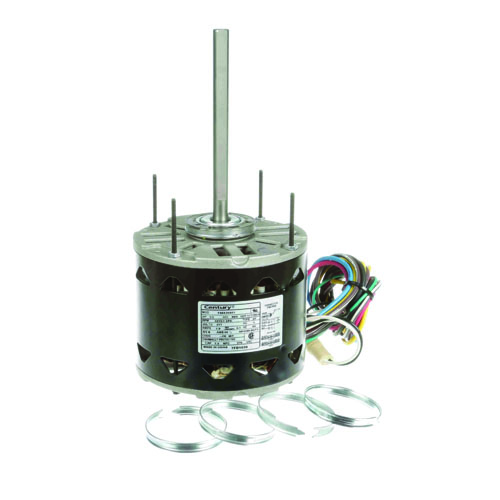

The Regal DL1036 permanent split capacitor motor is engineered for reliable performance in HVAC blower and air handling applications. Delivering 1/3 HP at 1075 RPM with three-speed operation, this motor operates on 115 Vac single phase power for consistent airflow. Its 48 NEMA frame and open air design provide effective ventilation, while sleeve bearing construction ensures smooth and quiet operation. The 1/2" x 4 1/2" shaft and reversible rotation make this motor suitable for flexible installation in a variety of HVAC systems and replacement applications.
Key Features:
-
1/3 HP permanent split capacitor motor for HVAC blower applications
-
Operates on 115 Vac, single phase power
-
1075 RPM with 3-speed operation for adjustable airflow
-
5.4 amp draw for efficient performance
-
48 NEMA frame size for standard mounting compatibility
-
Open air enclosure for effective cooling
-
Sleeve bearing construction for smooth and quiet operation
-
1/2" x 4 1/2" shaft for secure fit
-
Reversible rotation for flexible installation
