Description

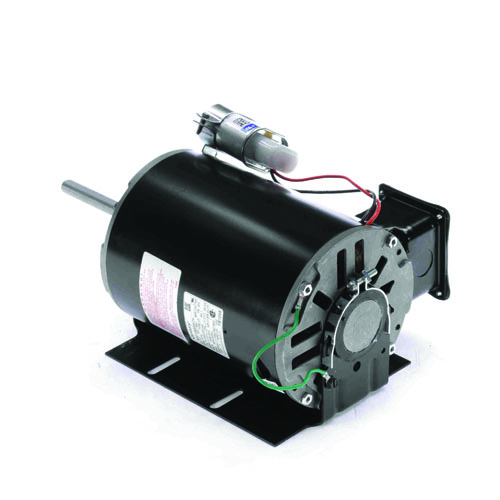

The Regal FB1056 motor is a dependable replacement motor designed for HVAC blower and air handling applications. Rated at 1/2 horsepower and operating at 1075 RPM, this motor supports 208–230/460 Vac single phase power for versatile installation options. Its 48Z frame and open air over enclosure provide effective cooling, while ball bearing construction and a resilient base help reduce vibration and ensure long service life. Equipped with an automatic protector and a 1.00 service factor, this motor is built for consistent, reliable performance in demanding environments.
Key Features:
-
1/2 HP motor for HVAC blower and air handling applications
-
Operates on 208–230/460 Vac, single phase power
-
1075 RPM single speed operation for consistent airflow
-
Amperage ratings of 5.2 amps at 208–230V and 2.6 amps at 460V
-
48Z frame size for standard mounting compatibility
-
Open air over enclosure for effective cooling
-
Ball bearing construction for smooth, long-lasting operation
-
1/2" flat shaft for secure blower wheel mounting
-
Resilient base to help minimize vibration
-
Automatic protector for added motor safety
-
1.00 service factor for dependable performance
