Description

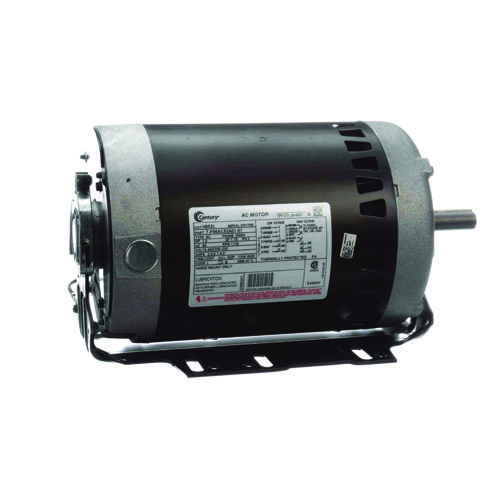

The Regal H854L motor is a robust three phase motor built for industrial and HVAC applications requiring reliable medium-speed operation. Delivering 2 horsepower at 1725 RPM, this motor operates on 200–230 or 460 Vac three phase power, providing consistent performance for heavy-duty equipment. The 56HZ NEMA frame and open drip proof enclosure ensure proper ventilation while protecting the motor. Ball bearing construction and a resilient base offer smooth, long-lasting operation. With a 7/8" x 2 5/16" shaft and reversible rotation, the H854L motor is suitable for flexible installation across a range of systems.
Key Features:
-
2 HP three phase motor for industrial and HVAC applications
-
Operates on 200–230/460 Vac power
-
1725 RPM single speed operation for medium-speed performance
-
6.6–7.0–3.5 amp draw
-
56HZ NEMA frame size for standard mounting compatibility
-
Open drip proof enclosure for protection and ventilation
-
Ball bearing construction for smooth, reliable operation
-
Resilient base for reduced vibration
-
7/8" x 2 5/16" shaft for secure mounting
-
Reversible rotation for installation flexibility
