Description

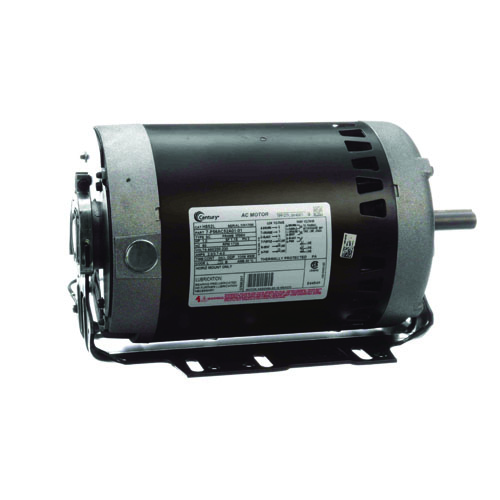

The Regal H885L motor is a high-performance three phase motor designed for industrial and HVAC applications requiring consistent medium-speed operation. Delivering 1.5 horsepower at 1725 RPM, this motor operates on 200–230 or 460 Vac three phase power for efficient and reliable performance. Its U56HZ NEMA frame and open drip proof enclosure provide proper ventilation and protection, while ball bearing construction ensures smooth, long-lasting operation. The 7/8" x 2 5/16" shaft and reversible rotation make this motor suitable for flexible installation across a range of industrial and commercial systems.
Key Features:
-
1.5 HP three phase motor for industrial and HVAC applications
-
Operates on 200–230/460 Vac three phase power
-
1725 RPM single speed operation for medium-speed performance
-
5.0–5.6–2.8 amp draw
-
U56HZ NEMA frame size for standard mounting compatibility
-
Open drip proof enclosure for protection and ventilation
-
Ball bearing construction for smooth, reliable operation
-
7/8" x 2 5/16" shaft for secure mounting
-
Reversible rotation for flexible installation
