Description

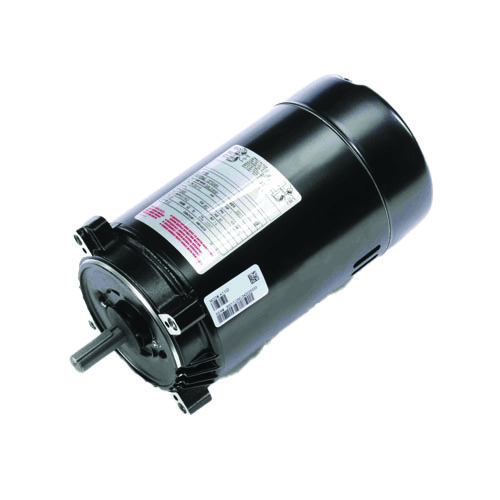

The Regal K1102 motor is a high-performance capacitor start motor engineered for demanding industrial and HVAC applications. This 1 horsepower motor operates on 115 or 230 Vac single phase power and delivers powerful 3450 RPM performance with continuous duty capability. Built on a durable 56C NEMA C face frame with an open drip proof enclosure, it features ball bearing construction, a keyed shaft, and a 1.40 service factor for reliable operation under load. The reversible rotation and auto protector enhance installation flexibility and motor protection, making this motor an excellent choice for long-term, high-speed applications.
Key Features:
-
1 HP capacitor start motor
-
Operates on 115/230 Vac single phase power
-
3450 RPM single speed operation
-
16.2/8.1 amp current draw
-
1.40 service factor for added durability
-
56C NEMA C face frame
-
Open drip proof enclosure
-
Ball bearing construction
-
Keyed shaft design
-
Reversible rotation
-
Auto protector for motor safety
-
Continuous duty rated motor
