Description

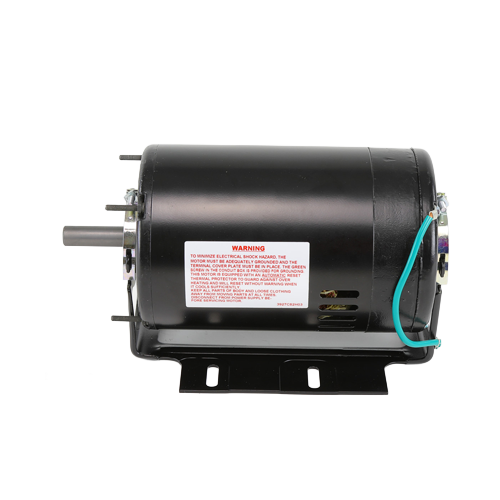

The Regal UH1036 permanent split capacitor motor is a reliable replacement for HVAC blower and air handling applications. Delivering 1/3 HP at 1075 RPM with single speed operation, this motor operates on 115 Vac single phase power for consistent performance. Its 48Y NEMA frame and totally enclosed air over (TEAO) design protect the motor while providing effective cooling. The ball bearing and resilient base construction reduce vibration and noise, and reversible rotation allows flexible installation.
Key Features:
-
1/3 HP permanent split capacitor motor for HVAC blower and air handling applications
-
Operates on 115 Vac, single phase power
-
1075 RPM single speed operation for reliable performance
-
5.3 amp draw for efficient operation
-
48Y NEMA frame size for standard mounting compatibility
-
Totally enclosed air over (TEAO) enclosure for protection and cooling
-
Ball bearing construction for smooth, long-lasting operation
-
Resilient base to minimize vibration and noise
-
1/2" x 3" shaft for secure and standard fit
-
Reversible rotation for flexible installation options
