Description
The Si-30 is a compact, reliable mini condensate pump designed for remote installation above air conditioning units. Ideal for residential and commercial HVAC systems, it efficiently removes condensate from ducted, wall-mounted, floor-mounted, and suspended ceiling units up to 5.5 tons.
Engineered for quiet performance and versatile installations, the Si-30 features a maximum flow rate of 5 gallons per hour with a 33-foot maximum discharge head. It comes complete with a mounting bracket, locking power cord, and drain safe device, ensuring secure and code-compliant operation.
Features:
- 230 V, 50/60 Hz – 14 W (SI30UL01UN23)
- Compatible with A/C units up to 5.5 tons
- Suitable for wall, floor, ceiling, and ducted installations
- Max flow: 5 gph | Max discharge: 33 ft
- Mounting bracket included
- Locking power cord for secure connection
- Integrated drain safe device
- Versatile installation options
Included In Kit:

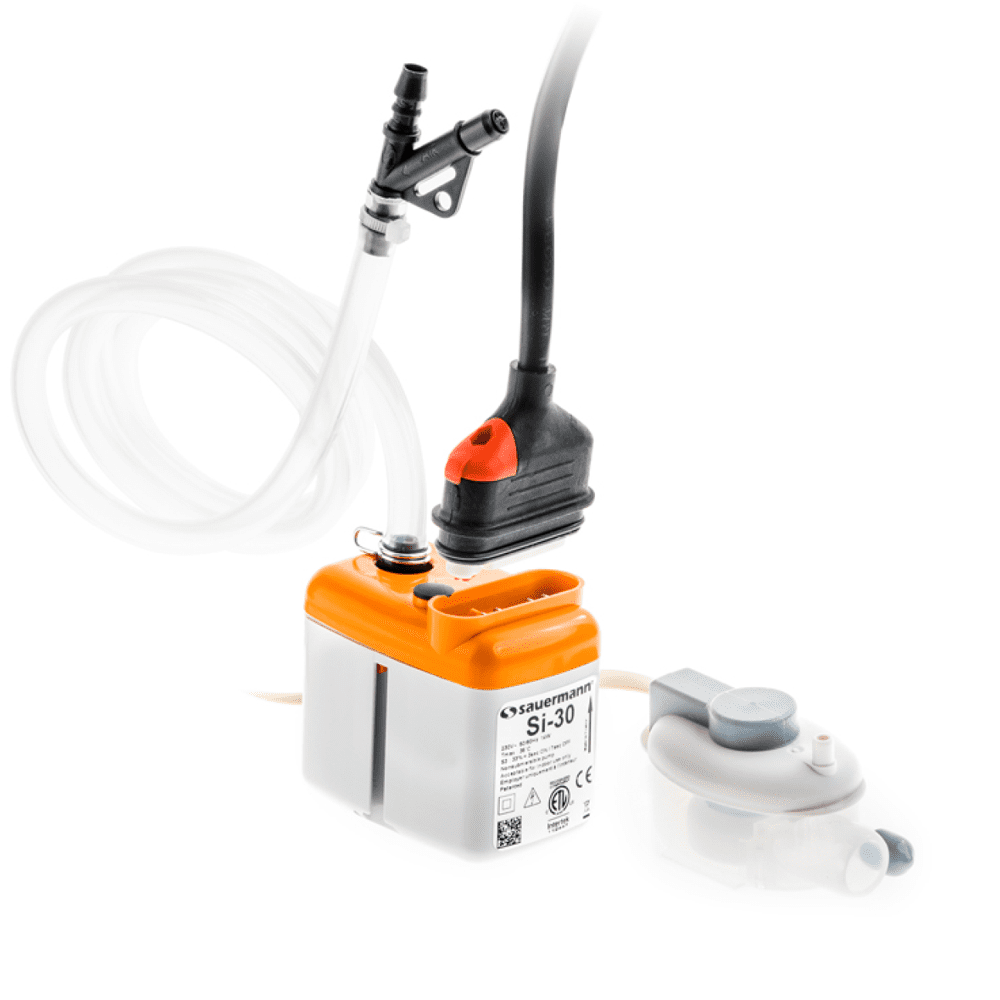

- Si-30 piston pump with clear PVC tube and pre-mounted drain safe device
- 5’ power cable: 2 power wires, 2 safety contact wires
- Anti-vibration rubber damper
- Detection unit – SI2958 with 2’ cable
Detection Unit Installation Kit:
- Rubber elbow
- Vent tube
- Mounting rail
- Adhesive
- 6 tie wraps
