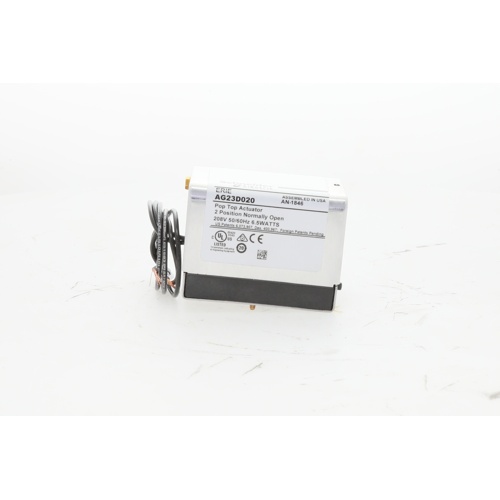

Schneider Electric (Erie) AG23D020 Actuator Overview
The Schneider Electric (Erie) AG23D020 is a reliable motor actuator engineered for two-position control applications in commercial and industrial HVAC systems. Designed to operate at 208VAC, this actuator features a spring-return mechanism that defaults to the normally open (NO) fail-safe position upon loss of power, ensuring system protection and consistent performance.
Key Features
- Operating Voltage: 208VAC
- Control Action: Two-position (open/close)
- Fail-Safe Operation: Spring return to normally open position
- Wire Leads: 18″ pre-attached wire leads for simplified installation
- Designed for use with Erie/Schneider Electric valve and damper assemblies
- Compact, durable motor actuator construction
Application
The AG23D020 actuator is ideal for controlling zone valves and dampers in commercial HVAC, hydronic heating, and building automation systems. Its spring-return, normally open design provides automatic fail-safe positioning, making it well-suited for applications where open-position default is required on power loss.
Installation
The 18″ wire leads allow for flexible wiring configurations and straightforward field installation. The actuator is designed to mount directly to compatible Erie valve bodies and damper assemblies, minimizing installation time and complexity.
Product Specifications
- SKU: AG23D020
- Brand: Schneider Electric (Erie)
- Voltage: 208VAC
- Control Type: Two Position
- Return Type: Spring Return
- Fail-Safe Position: Normally Open (NO)
- Wire Lead Length: 18 inches
