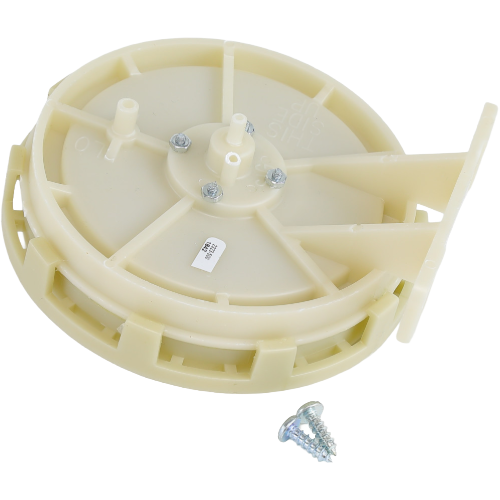

Schneider Electric (Barber Colman) 2323-500 Differential/Static Pressure Transmitter Overview
The Schneider Electric (Barber Colman) 2323-500 is a precision pneumatic differential or static pressure transmitter engineered for reliable performance in commercial HVAC and building automation applications. Designed to sense and transmit pressure signals across a calibrated range of 0 to 3 inches water column (W.C.), this transmitter delivers accurate, repeatable output for use in air handling, duct pressure monitoring, filter status, and related pneumatic control systems.
Key Features
- Measures differential or static pressure with a range of 0 to 3″ W.C.
- Air consumption rated at 29 SCIM (standard cubic inches per minute) for efficient pneumatic operation
- Standard nipple connections accept 1/4″ O.D. tubing for most ports
- LO and HI ports require 3/8″ O.D. tubing for proper connection
- Suitable for both differential and static pressure measurement applications
- Designed for integration into pneumatic building automation and HVAC control systems
- Built to Schneider Electric (Barber Colman) quality standards for long-term reliability
Specifications
- Model: 2323-500
- Brand: Schneider Electric (Barber Colman)
- Pressure Range: 0 to 3″ W.C.
- Air Consumption: 29 SCIM
- Standard Port Connections: 1/4″ O.D. tubing nipples
- LO and HI Port Connections: 3/8″ O.D. tubing nipples
- Type: Pneumatic Differential/Static Pressure Transmitter
Applications
- Duct static pressure monitoring in air handling units
- Filter differential pressure measurement and status indication
- Pneumatic building automation and HVAC control loops
- Fan and blower pressure differential sensing
- Commercial and industrial HVAC systems
