Description

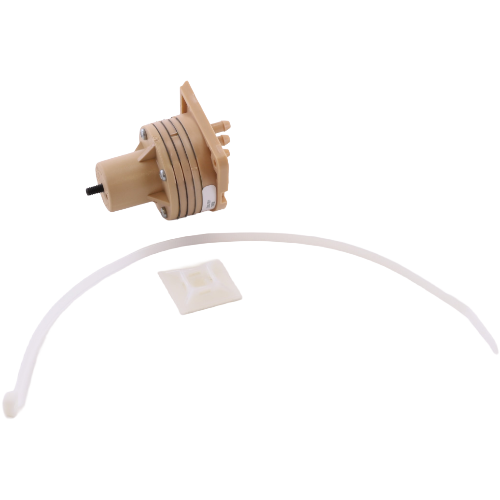

The Schneider Electric (Barber Colman) 2360-501 is a Pneumodular Reversing Relay engineered for precision pneumatic control in commercial HVAC and building automation systems. Designed to accept a proportional reverse input signal, this relay delivers reliable, accurate output inversion to support complex pneumatic control sequences.
Key Features
- Proportional reverse input signal operation for accurate pneumatic signal inversion
- ±10 Psig bias adjustment for fine-tuned control output calibration
- 20 Psig normal operating main air pressure for compatibility with standard pneumatic systems
- 8 SCFH air capacity to support responsive and stable control performance
- Includes mounting strap for secure panel or surface installation
- Includes adhesive-backed mounting base for flexible, tool-friendly placement
- Pneumodular design for easy integration into modular pneumatic control systems
Application
The 2360-501 is ideal for use in pneumatic building automation and HVAC control systems where signal reversal is required. It is commonly applied in variable air volume (VAV) systems, pneumatic thermostat circuits, and other commercial control applications that demand reliable proportional pneumatic signal management.
Specifications
- Model: 2360-501
- Type: Pneumodular Reversing Relay
- Signal Type: Proportional – Reverse Input
- Bias Adjustment: ±10 Psig
- Normal Operating Main Air Pressure: 20 Psig
- Air Capacity: 8 SCFH
- Mounting: Includes mounting strap and adhesive-backed mounting base
- Brand: Schneider Electric (Barber Colman)
