Description

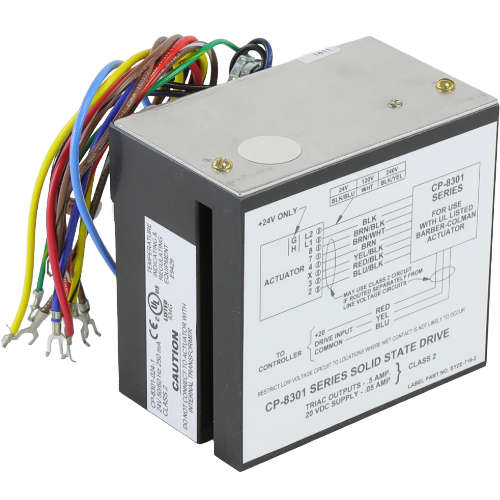

The Schneider Electric (Barber Colman) CP-8301-024 is a precision Electronic Actuator Drive engineered for reliable performance in commercial building automation and HVAC control applications. Designed to interface seamlessly with electronic control systems, this drive provides stable, regulated power and flexible signal input configuration to ensure accurate actuator positioning.
Key Electrical Specifications
- Input Signal Range: 1 to 15 Vdc
- Power Requirement: 24V
- Regulated and Filtered Power Supply Output: 20 Vdc at 50 mA
- Adjustable Input Range: 2 to 12 Vdc (factory set at 6 Vdc)
- Fixed Span: 3 Vdc for full actuation
Features & Benefits
- Adjustable input setpoint allows field calibration to match specific control system requirements
- Factory-set 6 Vdc input provides a reliable out-of-box starting point for commissioning
- 3 Vdc fixed span delivers consistent, repeatable full-stroke actuator control
- Regulated and filtered 20 Vdc / 50 mA power supply output ensures clean, stable signal integrity
- Compact drive design suited for integration into building automation panels and HVAC control enclosures
- Barber Colman heritage backed by Schneider Electric engineering and quality standards
Typical Applications
- Commercial HVAC valve and damper actuator control
- Building automation system (BAS) integration
- VAV and air handling unit control loops
- Electronic modulating control of HVAC equipment
Product Details
- Brand: Schneider Electric (Barber Colman)
- SKU / Part Number: CP-8301-024
