Description

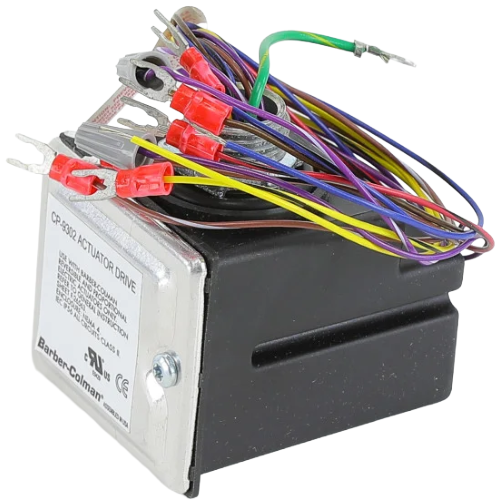

The Schneider Electric (Barber Colman) CP-9302 is a precision actuator drive module engineered for demanding building automation and HVAC control applications. Designed to accept a current-based input signal, this drive delivers accurate, repeatable positioning performance in commercial and industrial environments.
Input Signal & Control Specifications
- Input Signal Type: Current (4 to 20mA DC)
- Start Point: 4mAdc
- Input Span: 16mAdc
- Deadband: 3% of Input Span
Power Supply
- Power is supplied directly from the actuator — no separate power wiring required
Key Features & Benefits
- Industry-standard 4–20mA current input for seamless integration with building automation systems (BAS) and DDC controllers
- Tight 3% deadband minimizes hunting and ensures stable, energy-efficient actuator positioning
- Actuator-powered design simplifies installation and reduces field wiring complexity
- Compatible with Barber Colman / Schneider Electric actuator platforms for reliable OEM and retrofit applications
- Suitable for valve and damper actuator control in commercial HVAC systems
Applications
- Commercial building automation and DDC control systems
- Valve and damper actuator positioning
- HVAC air handling units (AHUs) and hydronic systems
- Retrofit and replacement of existing Barber Colman actuator drive modules
The CP-9302 is the dependable choice for HVAC professionals who require accurate current-input actuator control with minimal installation complexity. Backed by the Schneider Electric (Barber Colman) legacy of quality, this drive module integrates seamlessly into modern and legacy control architectures.
