Description

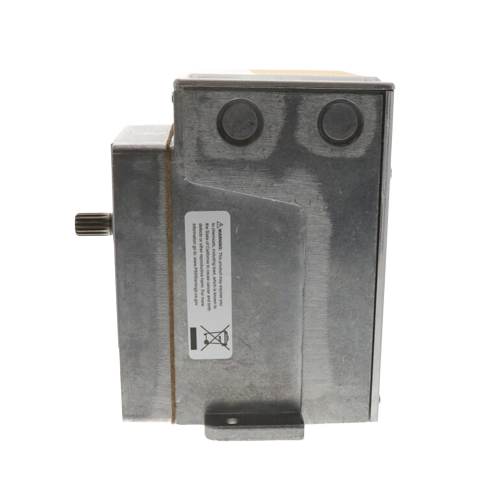

The Schneider Electric (Barber Colman) MP-2130-500 is a robust proportional actuator engineered for precise damper and valve control in commercial HVAC and building automation systems. Designed to deliver reliable, repeatable positioning performance, this actuator is a trusted solution for contractors and mechanical engineers who demand dependable operation in demanding environments.
Key Features
- 120 V supply voltage for compatibility with standard commercial control circuits
- 50 lb-in torque output for positive, authoritative damper and valve actuation
- 90-degree rotation for full-range proportional positioning
- Non-spring return design — maintains last position on power loss
- SPDT auxiliary switch for end-of-travel signaling or interlocked control sequences
- 25-second timing (no load) for smooth, controlled stroke speed
- Proportional control for accurate modulating response to control signals
Product Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MP-2130-500
- Supply Voltage: 120 V
- Torque Output: 50 lb-in
- Rotation: 90 Degrees
- Return Type: Non-Spring Return
- Auxiliary Switch: SPDT
- Stroke Timing: 25 Seconds (No Load)
- Control Type: Proportional
Applications
- Commercial HVAC damper actuation
- Valve positioning in air handling units
- Building automation and DDC control systems
- VAV and mixed-air control applications
Why Choose the MP-2130-500?
The MP-2130-500 combines Schneider Electric’s legacy Barber Colman engineering with proven proportional control technology. The integrated SPDT auxiliary switch adds versatility for interlock wiring, status indication, or sequencing logic — making this actuator a flexible fit across a wide range of commercial control applications. The non-spring return configuration is ideal for systems where last-position hold is preferred over fail-safe return.
