Description

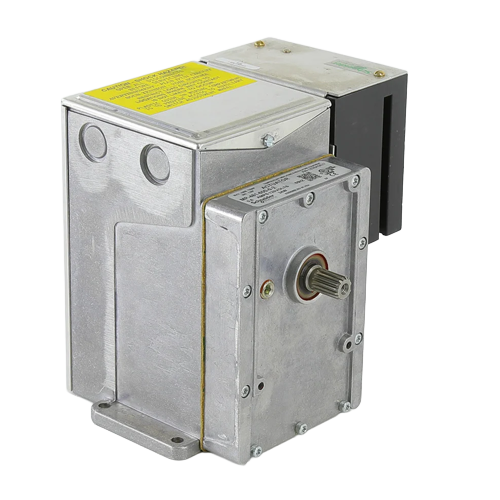

The Schneider Electric (Barber Colman) MP-481-600 is a heavy-duty proportional actuator engineered for precise damper and valve positioning in commercial HVAC and building automation systems. Driven by a 1–15 Vdc input signal, this actuator delivers reliable modulating control with robust torque output and smooth, repeatable operation across its full 180-degree rotation range.
Key Features
- 120 V power supply for compatibility with standard commercial control circuits
- 220 lb-in torque output for driving large dampers and heavy-duty valves
- 130-second timing (no load) for smooth, controlled positioning
- Non spring return design — actuator holds its last position on power loss
- SPDT auxiliary switch for end-of-travel signaling or interlock control
- 180-degree rotation for wide-range damper and valve applications
- 1 to 15 Vdc proportional input drive for precise modulating control
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MP-481-600
- Supply Voltage: 120 V
- Torque Output: 220 lb-in
- Timing (No Load): 130 seconds
- Return Type: Non Spring Return
- Auxiliary Switch: SPDT
- Rotation: 180 Degrees
- Input Drive Signal: 1 to 15 Vdc (Proportional)
Applications
- Commercial HVAC damper control
- Building automation and energy management systems
- Modulating valve positioning in air handling units
- VAV and mixed-air control systems
The MP-481-600 is an ideal choice for contractors and building automation engineers who require dependable, high-torque proportional actuation with auxiliary switching capability. Its non spring return configuration ensures the actuator maintains position during power interruptions, making it well-suited for applications where fail-in-place operation is required.
