Description

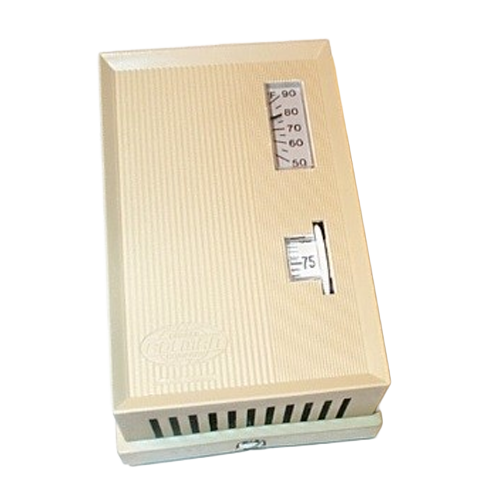

The Schneider Electric (Barber Colman) TC-1101-500 is a reliable two-position electric room thermostat engineered for versatile heating control in commercial and residential HVAC applications. Designed to operate on both low and line voltage systems, this thermostat delivers precise, dependable switching performance through its SPDT snap-action switch mechanism.
Key Features
- Two-position (on/off) electric room thermostat for heating control
- Compatible with low voltage and line voltage systems
- 55°F to 85°F setpoint temperature range for broad application flexibility
- SPDT (Single-Pole, Double-Throw) snap-action switch for positive, reliable switching
- Built-in heat anticipator for improved temperature accuracy and comfort
- NEMA 1 enclosure rating for standard indoor installations
- Includes protective cover for a clean, finished appearance
- Designed for flush or surface mounting on standard 2″ x 4″ electrical boxes
Application
The TC-1101-500 is ideal for controlling electric heating equipment in offices, schools, hotels, and light commercial buildings. Its wide setpoint range and dual voltage compatibility make it a go-to solution for replacement or new installations where a simple, dependable two-position thermostat is required.
Specifications
- Model: TC-1101-500
- Brand: Schneider Electric (Barber Colman)
- Control Type: Two Position (On/Off)
- Voltage: Low or Line Voltage
- Setpoint Range: 55°F to 85°F
- Switch Type: SPDT Snap Action
- Enclosure Rating: NEMA 1
- Heat Anticipator: Included
- Cover: Included
- Mounting: Flush or Surface, 2″ x 4″ Electrical Box
