Description

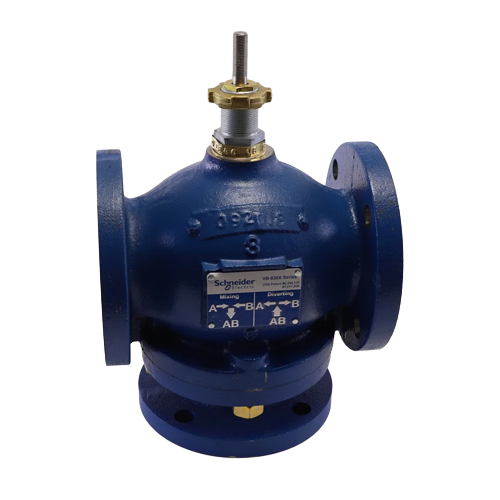

The Schneider Electric (Barber Colman) VB-8303-0-5-13 is a heavy-duty 3-inch flanged globe valve engineered for demanding hydronic and HVAC applications. Featuring a versatile 3-way design, this valve supports both mixing service (110 Cv) and diverting service (120 Cv), providing flexibility for a wide range of system configurations. Its linear flow characteristic ensures precise, proportional flow control, making it an ideal choice for use with modulating actuators in building automation and commercial HVAC systems.
Constructed with an ANSI Class 125 cast iron body and brass trim, the VB-8303-0-5-13 delivers reliable long-term performance in chilled water, hot water, and other compatible hydronic media. The flanged end connections simplify installation and maintenance in piping systems where serviceability is a priority.
Key Features
- 3-inch flanged globe valve for hydronic and commercial HVAC applications
- 3-way configuration supports both mixing (110 Cv) and diverting (120 Cv) service
- Linear flow characteristic for accurate, proportional flow control
- ANSI Class 125 pressure rating for reliable system performance
- Cast iron body construction for durability and long service life
- Brass trim for corrosion resistance and compatibility with hydronic media
- Flanged end connections for straightforward installation and maintenance
Specifications
- SKU: VB-8303-0-5-13
- Brand: Schneider Electric (Barber Colman)
- Valve Type: Globe, 3-Way
- Pipe Size: 3 inch
- End Connection: Flange
- Flow Characteristic: Linear
- Mixing Cv: 110
- Diverting Cv: 120
- Pressure Rating: ANSI Class 125
- Body Material: Cast Iron
- Trim Material: Brass
Applications
- Commercial and industrial hydronic heating and cooling systems
- Chilled water and hot water distribution
- Building automation and modulating control systems
- Fan coil units, air handling units, and heat exchangers
