Description

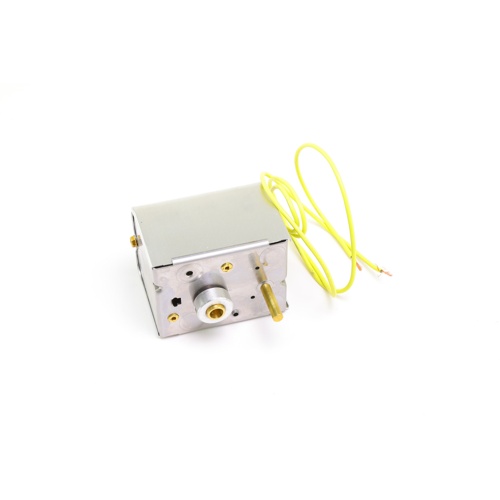

The Schneider Electric (Erie) 0453H0077GA00 is a medium-duty, direct-drive damper actuator engineered for reliable two-position control in commercial and light-industrial HVAC applications. Powered by a 24VAC signal, this spring-return actuator delivers clockwise (CW) rotation and automatically returns to its fail-safe position upon loss of power — providing dependable protection for your system and building occupants.
Key Features
- Operating voltage: 24VAC
- Torque rating: 55 in-oz for positive damper control
- Direct drive design eliminates the need for external linkage
- Spring return mechanism ensures fail-safe positioning on power loss
- Clockwise (CW) rotation for compatibility with standard damper configurations
- Two-position (open/close) control for straightforward on/off damper operation
- Medium-duty construction suited for commercial HVAC environments
Application
Ideal for use with zone dampers, outside air dampers, and exhaust/relief dampers in commercial HVAC systems. The two-position control mode makes this actuator a cost-effective solution wherever simple open/close damper operation is required. The spring-return feature ensures the damper moves to its safe position during a power failure, protecting building occupants and equipment.
Product Specifications
- Brand: Schneider Electric (Erie)
- Part Number / SKU: 0453H0077GA00
- Supply Voltage: 24VAC
- Torque: 55 in-oz
- Drive Type: Direct Drive
- Rotation: Clockwise (CW)
- Return Type: Spring Return
- Control Mode: Two-Position
- Duty Rating: Medium Duty
Why Choose Jackson Systems?
Jackson Systems stocks a wide selection of Schneider Electric (Erie) actuators and HVAC controls to keep your projects on schedule. Order the Erie 0453H0077GA00 with confidence from a trusted HVAC distributor.
