Description

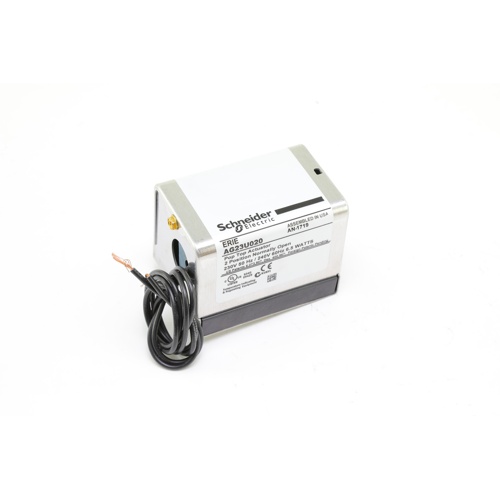

The Schneider Electric (Erie) AG23U020 is a two-position actuator motor engineered for dependable valve and damper control in commercial and light industrial HVAC applications. Operating on 240VAC power, this actuator delivers consistent, repeatable positioning performance while the spring return mechanism ensures the valve automatically returns to the normally open (NO) fail-safe position upon loss of power — a critical safety feature for hydronic heating, cooling, and process control systems.
Key Features
- Two-position (open/close) control for straightforward on/off valve actuation
- Spring return mechanism provides automatic fail-safe return to normally open position on power loss
- 240VAC operating voltage for compatibility with standard commercial HVAC control circuits
- 18″ pre-attached wire leads for easy field wiring and installation
- Compact actuator motor design for straightforward mounting to compatible Erie valve bodies
- Reliable performance in hydronic heating, chilled water, and process piping systems
Specifications
- Brand: Schneider Electric (Erie)
- SKU / Part Number: AG23U020
- Supply Voltage: 240VAC
- Control Type: Two Position
- Return Type: Spring Return
- Fail-Safe Position: Normally Open (NO)
- Wire Leads: 18″ pre-attached leads
Application
The AG23U020 is ideal for use with Erie zone valves in hydronic heating and cooling systems, fan coil units, and air handling unit coil control applications where a normally open, spring return fail-safe position is required. The 240VAC rating makes it well-suited for commercial building automation and HVAC control panels.
