Description

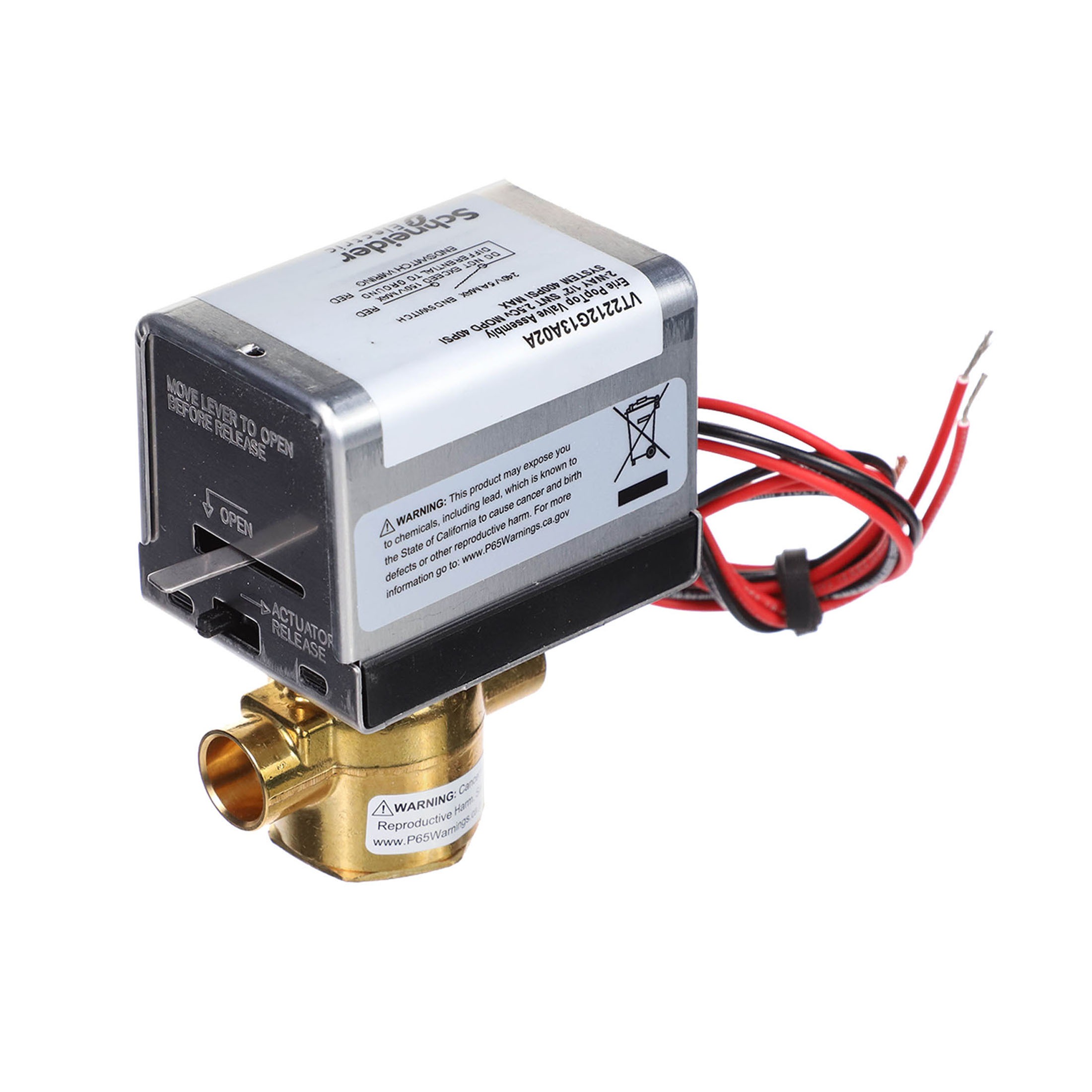

The Schneider Electric (Erie) VT2212G13A02A is a two-way, normally closed zone valve assembly engineered for precise hydronic zone control in residential and light commercial heating and cooling systems. Combining a robust valve body with an integrated actuator, this factory-assembled unit simplifies installation and ensures long-term reliability in demanding HVAC applications.
Key Features
- Two-way, normally closed (NC) valve configuration — closes automatically on power loss for fail-safe operation
- 1/2″ sweat (solder) end connections for fast, leak-free copper pipe installation
- 2.5 Cv flow coefficient for precise water flow regulation in hydronic systems
- 24VAC operating voltage — compatible with standard low-voltage HVAC control systems
- Spring return actuator ensures automatic valve closure upon de-energization
- Two-position (open/close) control for straightforward zone switching
- Integrated end switch signals the zone’s open status to boilers, pumps, or system controllers
- Factory-assembled valve and actuator for simplified installation and reduced field wiring
Product Specifications
- SKU: VT2212G13A02A
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Connection Size: 1/2″
- Connection Type: Sweat (Solder)
- Flow Coefficient (Cv): 2.5
- Control Voltage: 24VAC
- Actuator Type: Spring Return
- Operation Mode: Two Position (Open/Closed)
- End Switch: Included
Applications
- Hydronic heating and chilled water zone control
- Residential and light commercial boiler systems
- Fan coil unit water flow control
- Radiant floor heating zone isolation
- Multi-zone HVAC systems requiring end switch feedback for boiler or pump sequencing
Why Choose the Erie VT2212G13A02A?
The Erie VT2212G13A02A delivers the dependability that HVAC professionals expect from the Schneider Electric Erie line. The normally closed, spring return design guarantees the valve shuts down safely during a power interruption, protecting your hydronic system from unintended flow. The built-in end switch enables seamless integration with boiler controls and circulators, allowing the system to respond only when a zone is actively calling for heat or cooling. The 1/2″ sweat connection makes this valve a natural fit for copper piping systems, while the 24VAC actuator ensures compatibility with virtually all residential and commercial zone control boards.
