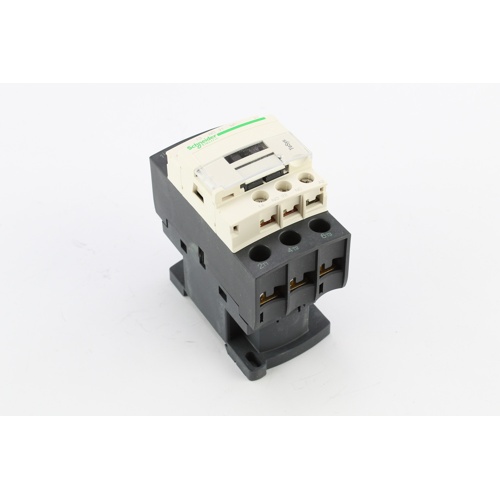

Schneider Electric (Square D) LC1D32F7 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D32F7 is a heavy-duty, IEC-rated non-reversing contactor engineered for dependable motor control and load switching in commercial and industrial HVAC applications. Part of the trusted TeSys D series, this contactor delivers robust performance in demanding environments where reliable electrical switching is critical.
Key Features
- 3-pole configuration for three-phase load control
- 32-amp continuous current rating for motor and resistive load applications
- 110V AC (50/60 Hz) control coil voltage — ideal for international and domestic control circuits
- Non-reversing design for straightforward motor starting and stopping
- Screw-type power and control terminals for secure, vibration-resistant connections
- One normally closed (NC) auxiliary contact included
- One normally open (NO) auxiliary contact included
- IEC-rated construction for global compatibility and consistent performance
- Compact TeSys D frame for easy panel integration and space savings
Specifications
- SKU / Part Number: LC1D32F7
- Brand: Schneider Electric (Square D)
- Series: TeSys D
- Poles: 3
- Current Rating: 32 Amps
- Coil Voltage: 110V AC (50/60 Hz)
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Closed (NC) + 1 Normally Open (NO)
- Standard: IEC Rated
Typical Applications
- HVAC compressor and fan motor control
- Commercial refrigeration equipment
- Air handling unit motor starters
- Pump and blower motor switching
- Industrial control panels and MCC assemblies
Why Choose the LC1D32F7?
Schneider Electric’s TeSys D contactors are globally recognized for their long electrical life, low power consumption coils, and reliable switching performance. The LC1D32F7’s integrated auxiliary contacts simplify control circuit wiring, while the screw terminal design ensures a secure connection even in high-vibration HVAC environments. Whether you’re building a new control panel or replacing a worn contactor in the field, the LC1D32F7 is a proven, drop-in solution.
