Description

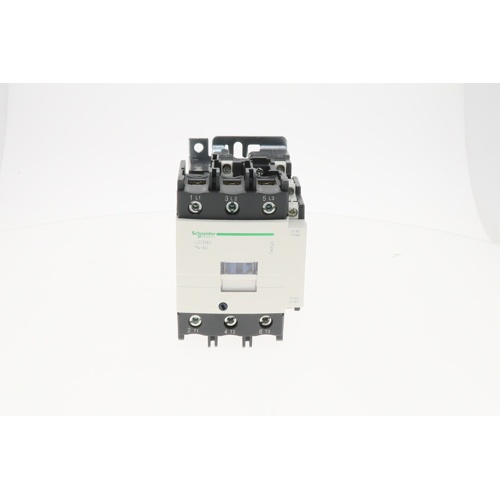

The Schneider Electric (Square D) LC1D80F7 is a heavy-duty, non-reversing IEC contactor engineered for reliable motor and load switching in commercial and industrial HVAC applications. Featuring a 110VAC control coil, this 3-pole contactor delivers a robust 80-amp continuous current rating, making it well-suited for demanding electrical control circuits, compressor starters, fan motor control panels, and other power-switching applications where dependable performance is critical.
Built to Square D’s exacting quality standards, the LC1D80F7 includes integrated auxiliary contacts — one normally closed (1NC) and one normally open (1NO) — providing essential feedback and interlocking capability for control circuits without requiring additional add-on blocks. Screw-type power and control terminals ensure a secure, vibration-resistant connection and simplify field wiring during installation.
Key Features
- Non-reversing contactor design for straightforward motor and load control
- 110VAC control coil voltage (F7 coil designation)
- 3-pole configuration for three-phase power switching
- 80-amp continuous current rating
- Screw-type terminals for secure, reliable field wiring
- Integrated 1NC (normally closed) auxiliary contact
- Integrated 1NO (normally open) auxiliary contact
- IEC-rated contactor from Schneider Electric’s TeSys D series
Typical Applications
- Commercial HVAC compressor motor starters
- Condenser and evaporator fan motor control
- Industrial motor control centers (MCCs)
- Power distribution and load switching panels
- Control panel interlocking and feedback circuits
Product Specifications
- SKU / Part Number: LC1D80F7
- Brand: Schneider Electric (Square D)
- Coil Voltage: 110VAC
- Number of Poles: 3
- Current Rating: 80 Amps
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Closed (1NC) + 1 Normally Open (1NO)
