Description

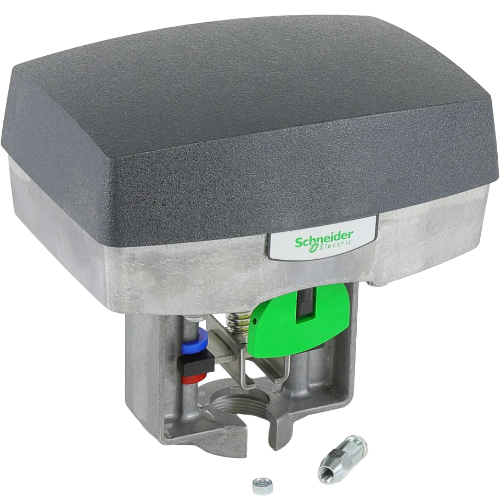

The Schneider Electric (Barber Colman) M1500A-VB is a heavy-duty Forta series globe valve actuator engineered for precise control in commercial and industrial HVAC hydronic systems. Operating on a 24V power supply, this actuator supports both floating and proportional control modes, making it a versatile solution for a wide range of building automation and valve control applications.
Control Signal Flexibility
The M1500A-VB accepts multiple input signal types to integrate seamlessly with virtually any building automation or DDC control system:
- 0 to 10 Vdc control signal
- 2 to 10 Vdc control signal
- 4 to 20 mA control signal (requires 500 Ohm resistor, included)
- 2 to 10 Vdc feedback signal for accurate position monitoring
Performance Specifications
- Supply Voltage: 24V
- Control Modes: Floating or Proportional
- Actuator Force: 337 Lbf (pound-force)
- Feedback Signal: 2 to 10 Vdc
- Mounting Style: Screw Mount
Key Features & Benefits
- High 337 Lbf actuator force ensures reliable valve operation even under demanding system pressures
- Dual control mode capability (floating and proportional) provides installation flexibility
- Multi-signal input compatibility — 0–10 Vdc, 2–10 Vdc, and 4–20 mA — supports integration with a broad range of controllers
- 2 to 10 Vdc position feedback enables closed-loop verification and diagnostics
- Screw mount design simplifies installation and ensures a secure, stable connection to the valve body
- Part of the proven Forta actuator series from Schneider Electric (formerly Barber Colman), trusted in commercial HVAC applications
Typical Applications
- Hydronic heating and cooling systems
- Chilled water and hot water coil control
- Building automation and DDC systems
- Commercial HVAC air handling units
- Variable flow hydronic distribution systems
