Description

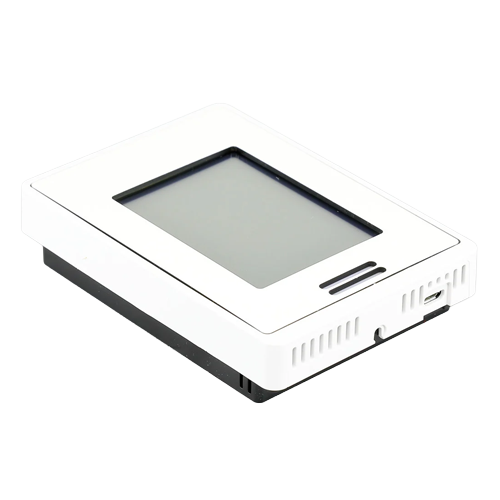

The Schneider Electric (Barber Colman) SE8350U0B11 is a sophisticated commercial room controller engineered for precise environmental management in demanding HVAC applications. Featuring an integrated relative humidity (RH) sensor with dedicated dehumidification control, this unit delivers comprehensive comfort and indoor air quality management from a single wall-mounted device. Its universal outputs provide maximum flexibility for interfacing with a wide range of HVAC equipment and control configurations, while BACnet MS/TP communication ensures seamless integration into modern building automation systems.
Key Features
- Integrated RH (relative humidity) sensor with active dehumidification control
- Universal outputs for flexible HVAC equipment compatibility
- BACnet MS/TP communication protocol for building automation integration
- No PIR motion sensor — ideal for applications where occupancy detection is not required
- Clean white casing and fascia for a professional, unobtrusive wall appearance
- Designed for commercial and light industrial room control applications
Communication & Integration
The SE8350U0B11 communicates via BACnet MS/TP, one of the most widely adopted open protocols in commercial building automation. This enables straightforward integration with BAS/BMS platforms, allowing facility managers to monitor and adjust temperature and humidity setpoints remotely and log performance data across an entire building network.
Humidity & Dehumidification Control
The onboard RH sensor continuously monitors room humidity levels, enabling the controller to activate dehumidification sequences automatically. This capability helps maintain occupant comfort, protect building materials, and support indoor air quality standards — all without requiring a separate standalone dehumidistat.
Universal Outputs
Universal output capability means the SE8350U0B11 can be configured to drive a variety of actuators, fan coil units, VAV terminals, and other HVAC devices. This versatility reduces the need for additional interface hardware and simplifies system design.
Specifications
- SKU: SE8350U0B11
- Brand: Schneider Electric (Barber Colman)
- Sensor Type: Relative Humidity (RH)
- Dehumidification Control: Yes
- PIR Motion Sensor: No
- Output Type: Universal Outputs
- Communication Protocol: BACnet MS/TP
- Casing / Fascia Color: White
- Application: Commercial Room Control
