Description

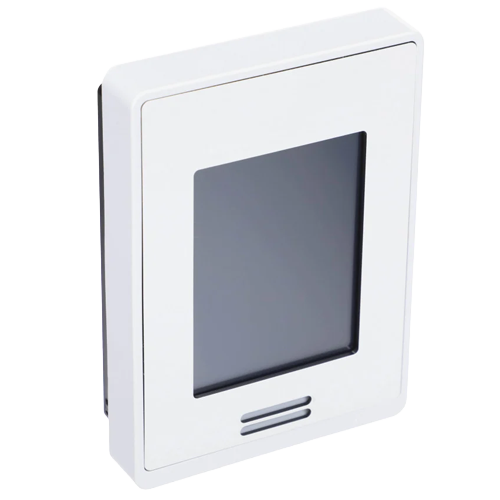

Schneider Electric SE8650U0B11 RTU/HP IAQ Room Controller Overview
The Schneider Electric (Barber Colman) SE8650U0B11 is a high-performance rooftop unit (RTU) and heat pump (HP) room controller engineered for demanding indoor air quality (IAQ) applications. Featuring an integrated relative humidity (RH) sensor with active dehumidification control, this controller gives building operators precise command over both temperature and moisture levels — a critical combination for occupant comfort and facility protection. The clean white casing and fascia blend seamlessly into commercial interiors, while the BACnet MS/TP communication protocol ensures straightforward integration into modern building automation systems (BAS).
Key Features
- Designed for rooftop unit (RTU) and heat pump (HP) applications
- Integrated relative humidity (RH) sensor for real-time moisture monitoring
- Active dehumidification control to maintain optimal indoor air quality
- Universal outputs for flexible field wiring and equipment compatibility
- BACnet MS/TP communication for seamless building automation integration
- No PIR motion sensor — ideal for applications where occupancy detection is not required
- White casing and fascia for a professional, unobtrusive wall appearance
- Part of the Schneider Electric SE8000 series room controller platform
Indoor Air Quality & Dehumidification Control
The SE8650U0B11 goes beyond basic temperature control by incorporating a built-in RH sensor and dedicated dehumidification logic. This allows the controller to actively manage humidity levels within the conditioned space — reducing the risk of mold growth, improving occupant comfort, and protecting sensitive equipment or building materials. The dehumidification output can be configured to work with the RTU or heat pump’s existing cooling and reheat capabilities.
Universal Outputs & Flexible Integration
Universal outputs provide maximum flexibility during installation and commissioning. Field technicians can configure outputs to match the specific equipment being controlled, reducing the need for additional interface hardware and simplifying the overall system design. Combined with BACnet MS/TP communication, the SE8650U0B11 integrates directly into a wide range of building automation and energy management systems.
BACnet MS/TP Communication
The SE8650U0B11 communicates natively over BACnet MS/TP — one of the most widely adopted open protocols in commercial building automation. This enables centralized monitoring, scheduling, alarming, and trending through any BACnet-compatible building management system (BMS), making it an ideal choice for new construction and retrofit projects alike.
Specifications
- SKU: SE8650U0B11
- Brand: Schneider Electric (Barber Colman)
- Application: Rooftop Unit (RTU) / Heat Pump (HP)
- Integrated Sensor: Relative Humidity (RH)
- Dehumidification Control: Yes
- Output Type: Universal Outputs
- PIR Motion Sensor: None
- Communication Protocol: BACnet MS/TP
- Casing & Fascia Color: White
- Series: SE8000 Room Controller Platform
