Description

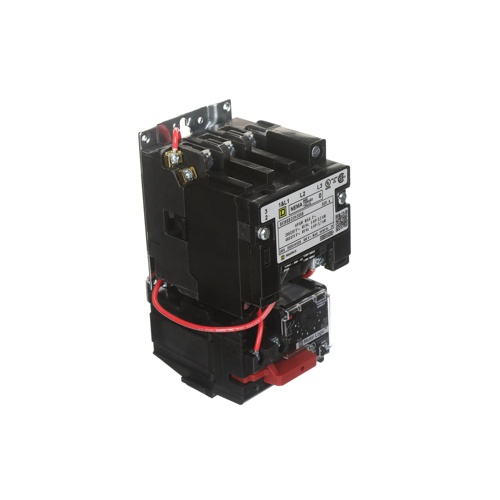

The Schneider Electric (Square D) 8536SBO2V02H309S is a NEMA Size 0 full-voltage non-reversing motor starter designed for dependable motor control and overload protection in commercial and industrial HVAC applications. Built to Square D’s exacting standards, this starter provides robust across-the-line starting performance with a 120V control voltage coil, making it a trusted solution for fan motors, pump motors, compressors, and other motor-driven HVAC equipment.
Key Features
- NEMA Size 0 rating for motors up to 2 HP at 200V, 2 HP at 230V, or 5 HP at 460/575V (three-phase)
- 120V AC control coil voltage for straightforward integration with standard control circuits
- Full-voltage, non-reversing (FVNR) across-the-line starting operation
- Integrated thermal overload relay for motor overload and phase-loss protection
- Heavy-duty NEMA-rated construction for reliable performance in demanding environments
- Compact enclosure suitable for panel mounting and field installation
- Designed and manufactured by Schneider Electric under the trusted Square D brand
Application
Ideal for controlling single- or three-phase motors in commercial HVAC systems including air handlers, cooling towers, hydronic pumps, exhaust fans, and compressor units. The 8536SBO2V02H309S is engineered for long service life and minimal maintenance, ensuring motor assets are protected against overload conditions that can cause premature failure.
Why Choose Square D Motor Starters?
Square D by Schneider Electric is a globally recognized leader in motor control technology. The 8536 Series NEMA motor starters are built to meet NEMA ICS 2 standards and are UL listed, providing installers and engineers with confidence in safety and compliance. Their robust contact design and reliable overload relay make them a preferred choice for HVAC professionals seeking long-term motor protection.
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 8536SBO2V02H309S
- Starter Type: Full-Voltage Non-Reversing (FVNR)
- NEMA Size: 0
- Control Coil Voltage: 120V AC
- Standards: NEMA ICS 2, UL Listed
- Typical Application: Commercial and industrial motor control
