Description

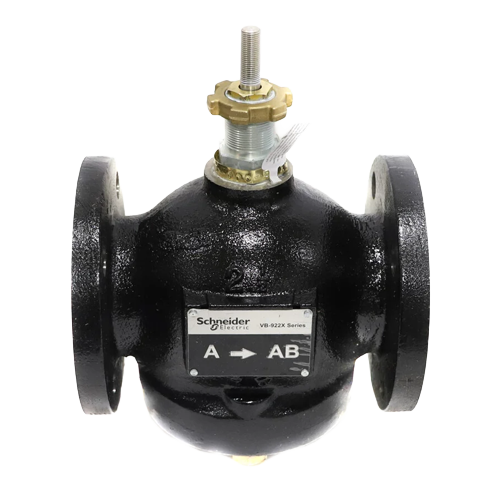

The Schneider Electric (Barber Colman) VB-9223-0-5-12 is a heavy-duty two-way globe valve engineered for precise flow control in commercial and industrial HVAC hydronic systems. Featuring a 2-1/2″ flanged connection and an equal percentage flow characteristic, this valve delivers accurate, repeatable modulation across the full range of system operating conditions.
Key Features
- 2-1/2″ flanged end connections for secure, leak-free installation
- Two-way, equal percentage flow characteristic for precise proportional control
- 56 Cv flow coefficient for high-capacity hydronic applications
- ANSI Class 125 pressure rating for reliable performance in standard hydronic systems
- Cast iron body for durability and long service life
- Brass trim for corrosion resistance and dependable seating
- Stem Up Closed (SUC) fail-safe configuration
Specifications
- SKU: VB-9223-0-5-12
- Brand: Schneider Electric (Barber Colman)
- Valve Type: Globe, Two-Way
- Pipe Size: 2-1/2″
- Connection Type: Flange
- Flow Characteristic: Equal Percentage
- Cv Rating: 56
- Pressure Rating: ANSI Class 125
- Body Material: Cast Iron
- Trim Material: Brass
- Actuator Action: Stem Up Closed
Applications
- Commercial and industrial hydronic heating and cooling systems
- Air handling unit coil control
- Chilled water and hot water distribution systems
- Building automation and DDC control applications
- Fan coil unit and terminal unit flow control
Designed to pair with Schneider Electric / Barber Colman actuators, the VB-9223-0-5-12 provides reliable, long-lasting performance in demanding HVAC environments. The equal percentage flow characteristic ensures smooth, stable control at both low and high load conditions, making it ideal for variable flow hydronic systems.
