Description

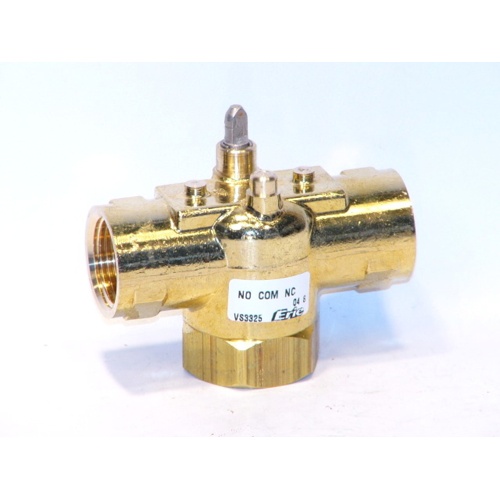

The Schneider Electric (Erie) VS3325 is a heavy-duty, two-position zone valve body engineered for steam heating systems. Featuring a 3/4″ NPT connection and a three-way flow configuration, this valve body delivers precise zone control with a 5.0 Cv flow coefficient — making it well suited for commercial and light industrial hydronic and steam distribution applications.
Key Features
- Three-way valve body design for diverting or mixing steam flow
- 3/4″ NPT end connections for straightforward installation into standard piping
- 5.0 Cv flow coefficient for reliable, consistent steam flow control
- Two-position (open/close) operation for simple, dependable zone switching
- Engineered specifically for steam service — built to withstand the demands of steam heating systems
- Compatible with Erie/Schneider Electric actuators for a complete zone valve assembly
- Durable construction designed for long service life in commercial HVAC applications
Applications
- Steam zone heating systems
- Commercial and light industrial hydronic distribution
- Multi-zone steam heating control
- Retrofit and replacement in existing Erie zone valve installations
Specifications
- SKU: VS3325
- Brand: Schneider Electric (Erie)
- Valve Type: Zone Valve Body
- Configuration: Three-Way
- Connection Size: 3/4″ NPT
- Flow Coefficient (Cv): 5.0
- Operation: Two Position
- Service: Steam
