Description

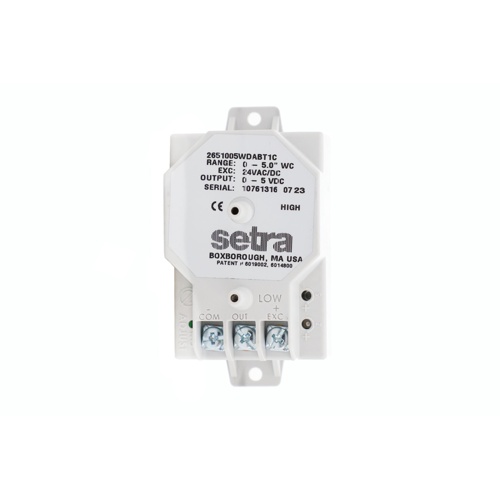

The Setra 2651005WDABT1C is a high-performance, low differential pressure transducer engineered for accurate and reliable pressure measurement in HVAC building automation and air handling applications. Designed for unidirectional sensing, this transducer delivers consistent, repeatable readings across a 0 to 5 inches water column (“WC) pressure range — making it an ideal solution for monitoring duct static pressure, filter status, fan performance, and clean room environments.
Powered by a standard 24 VAC supply and providing a clean 0 to 5 VDC analog output signal, the 265 Series integrates seamlessly with building automation systems, DDC controllers, and data acquisition equipment. The terminal strip connection simplifies field wiring and reduces installation time.
Key Specifications
- Pressure Range: 0 to 5″ WC (Unidirectional)
- Power Supply: 24 VAC
- Output Signal: 0 to 5 VDC
- Accuracy: ±1% Full Scale (FS)
- Connection Type: Terminal Strip
- Sensing Type: Low Differential Pressure
Features & Benefits
- Unidirectional design optimized for positive-pressure HVAC duct and air system monitoring
- ±1% FS accuracy ensures precise, dependable pressure readings for critical control applications
- 0–5 VDC analog output is compatible with a wide range of BAS and DDC controllers
- 24 VAC power supply aligns with standard HVAC control voltage — no special power conditioning required
- Terminal strip wiring connection simplifies installation and field termination
- Compact, robust construction suitable for commercial and industrial HVAC environments
- Part of Setra’s trusted 265 Series, widely specified by mechanical engineers and building automation professionals
Typical Applications
- Duct static pressure monitoring
- Air filter differential pressure measurement
- Fan and blower performance verification
- Clean room and laboratory pressure control
- Building automation and DDC system integration
- HVAC air handling unit (AHU) controls
Order the Setra 2651005WDABT1C from Jackson Systems today and get the precision pressure sensing your HVAC system demands.
