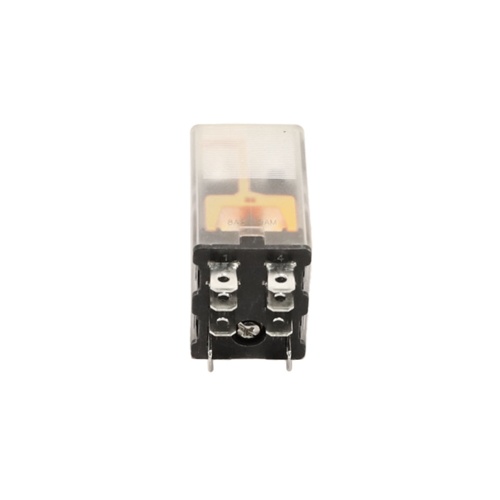

Siemens 3TX7114-5DF13C DPDT Relay Overview
The Siemens 3TX7114-5DF13C is a double-pole double-throw (DPDT) general purpose relay designed for dependable switching performance in HVAC systems, building automation, and light industrial control applications. With a 120VAC coil voltage and a 15-amp contact rating, this relay delivers the switching capacity needed for a wide range of control circuit demands.
Key Features
- Double-Pole Double-Throw (DPDT) contact configuration for versatile switching
- 120VAC coil voltage for compatibility with standard HVAC and building control circuits
- 15-amp contact rating for robust load switching capability
- Siemens quality construction for long service life and reliable operation
- Suitable for HVAC controls, building automation, and industrial control panels
- Compact design for easy installation in control enclosures and panels
Specifications
- SKU: 3TX7114-5DF13C
- Brand: Siemens
- Contact Configuration: DPDT (Double-Pole Double-Throw)
- Coil Voltage: 120VAC
- Contact Rating: 15 Amps
Applications
- HVAC control panels and air handling unit controls
- Building automation and energy management systems
- Light industrial control circuits
- Fan, pump, and motor switching applications
- General purpose relay logic and interlock circuits
