Description

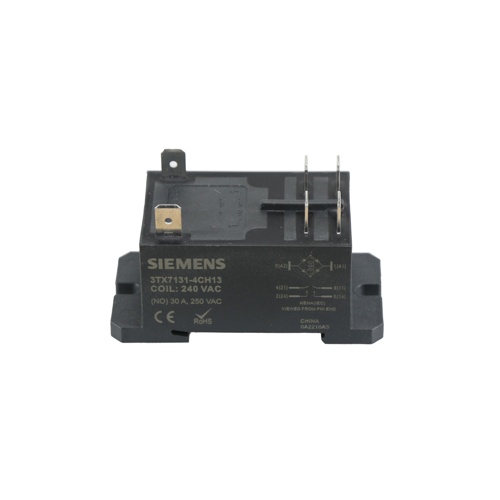

The Siemens 3TX7131-4CH13 is a heavy-duty general purpose relay engineered for dependable switching performance in HVAC, building automation, and industrial control applications. With a 240 VAC coil voltage and a Double Pole Single Throw Normally Open (DPST-NO) contact configuration, this relay provides a robust and versatile solution for controlling loads that require simultaneous two-pole switching.
Key Features
- Coil Voltage: 240 VAC for compatibility with standard commercial and industrial power circuits
- Contact Configuration: DPST-NO (Double Pole Single Throw, Normally Open) — both poles switch simultaneously upon coil energization
- Contact Rating: 30 Amps for high-load switching capability
- Siemens 3TX7 Series design — built for long service life and consistent operation
- Suitable for HVAC control panels, building automation systems, and industrial switching applications
Application
The 3TX7131-4CH13 is ideal for use in commercial HVAC control panels, fan and motor switching circuits, and building automation systems where reliable two-pole load control is required. Its 30-amp contact rating accommodates a wide range of motor and resistive load applications.
Specifications
- SKU: 3TX7131-4CH13
- Brand: Siemens
- Coil Voltage: 240 VAC
- Contact Configuration: DPST-NO (Double Pole Single Throw, Normally Open)
- Contact Current Rating: 30 Amps
- Series: 3TX7
