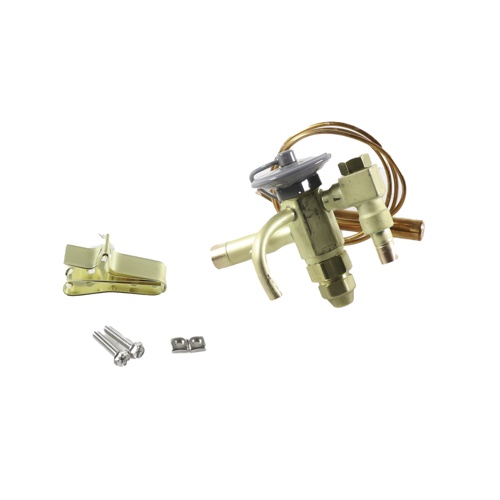

Sporlan Controls 108676 3/8″x1/2″ ODF R-500 TXV w/ 30″ External Equalizer

Description

The Sporlan Controls 108676 is a thermostatic expansion valve (TXV) engineered for reliable, precise refrigerant metering in R-500 refrigeration and air conditioning systems. Featuring 3/8″ x 1/2″ ODF sweat connections and a 30″ external equalizer line, this valve is designed to maintain optimal superheat control across a wide range of operating conditions, protecting the compressor and maximizing system efficiency.

Key Features

• Designed for use with R-500 refrigerant systems
• 3/8″ inlet x 1/2″ outlet ODF (sweat) connections for easy field installation
• 30″ external equalizer line for accurate downstream pressure sensing
• Thermostatic expansion valve design provides precise superheat control
• Manufactured by Sporlan Controls, a trusted name in refrigeration flow control

Specifications

• SKU: 108676
• Brand: Sporlan Controls
• Refrigerant: R-500
• Inlet Connection: 3/8″ ODF
• Outlet Connection: 1/2″ ODF
• Equalizer Type: External
• Equalizer Line Length: 30″

Application

This TXV is ideal for service, replacement, or new installation in R-500 refrigeration and HVAC systems where precise refrigerant flow control and superheat regulation are required. The external equalizer connection ensures accurate pressure sensing at the evaporator outlet, making this valve well-suited for systems with higher pressure drops across the evaporator coil.
