Sporlan Controls 169463 3/8″x1/2″ ODF R410A 2-Ton TXV

Description

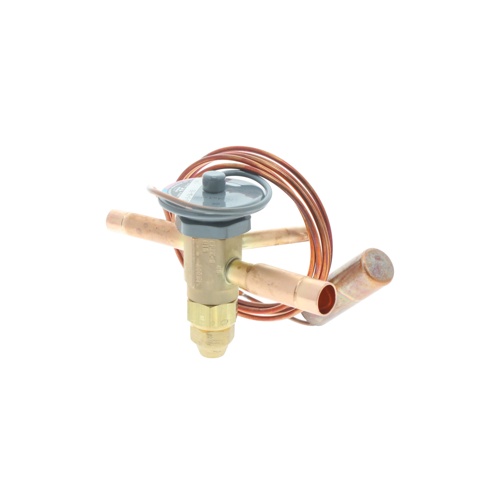

Sporlan Controls 169463 R410A 2-Ton Thermostatic Expansion Valve

The Sporlan Controls 169463 is a thermostatic expansion valve (TXV) engineered for R410A refrigerant systems with a 2-ton capacity rating. Designed to deliver precise refrigerant metering, this TXV maintains optimal evaporator superheat across a wide range of operating conditions, helping maximize system efficiency and protect the compressor from liquid slugging.

Sporlan, a trusted name in refrigeration and HVAC controls, manufactures this valve to meet the demands of residential and light commercial air conditioning applications. The 3/8″ x 1/2″ ODF (Outside Diameter Fitting) connections ensure straightforward installation into standard copper line sets, reducing labor time and the potential for installation errors.

Key Features

• Designed for R410A refrigerant — a high-efficiency, environmentally preferred refrigerant used in modern residential and commercial AC systems
• 2-Ton capacity rating for proper sizing in matched system applications
• 3/8″ liquid line inlet x 1/2″ ODF outlet connections for compatibility with standard copper tubing
• Thermostatic expansion valve design provides automatic superheat control for consistent, efficient system performance
• Engineered by Sporlan Controls, a Parker brand with decades of expertise in refrigerant flow control
• Helps protect the compressor by preventing liquid refrigerant from reaching the suction line
• Suitable for residential and light commercial split-system air conditioning applications

Specifications

• SKU: 169463
• Brand: Sporlan Controls
• Refrigerant: R410A
• Capacity: 2 Ton
• Inlet Connection: 3/8″ ODF
• Outlet Connection: 1/2″ ODF
• Valve Type: Thermostatic Expansion Valve (TXV)

Application

This TXV is ideal for use in split-system air conditioners and heat pumps charged with R410A refrigerant. Proper TXV selection and installation ensures the evaporator operates at peak efficiency, reduces energy consumption, and extends the service life of the entire refrigeration circuit. Always verify system capacity, refrigerant type, and connection sizes before installation.
