Description

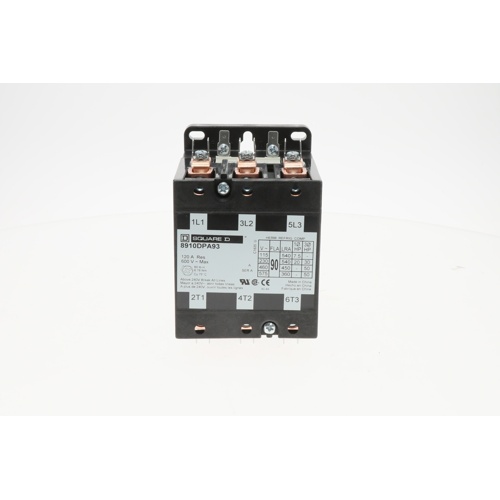

The Schneider Electric (Square D) 8910DPA93V02 is a heavy-duty, definite purpose contactor engineered for demanding HVAC and industrial load-switching applications. With a 120V coil voltage, 90-amp current rating, and 3-pole configuration, this contactor is built to handle the rigorous demands of commercial and industrial heating, cooling, and motor control systems.
Square D contactors are renowned for their robust construction, long electrical life, and consistent performance under high-cycle conditions. The 8910DPA93V02 is an ideal replacement or upgrade contactor for rooftop units, chillers, air handling units, compressors, and other three-phase HVAC equipment.
Key Features
- 120V AC coil voltage for broad compatibility with standard control circuits
- 90-amp continuous current rating for high-load HVAC and motor applications
- 3-pole design suitable for three-phase load switching
- Definite purpose contactor construction for reliable, long-service-life operation
- Engineered by Schneider Electric under the trusted Square D brand
- Ideal for commercial HVAC compressors, air handlers, rooftop units, and motor loads
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 8910DPA93V02
- Coil Voltage: 120V AC
- Current Rating: 90 Amps
- Poles: 3-Pole
- Application: Definite Purpose / HVAC & Motor Control
Applications
- Commercial rooftop HVAC units
- Chiller and compressor motor control
- Air handling and fan coil units
- Three-phase motor switching circuits
- Industrial load control panels
