Schneider Electric (Square D) LRD32L 23-32A Class 20 LRD Overload Relay

Description

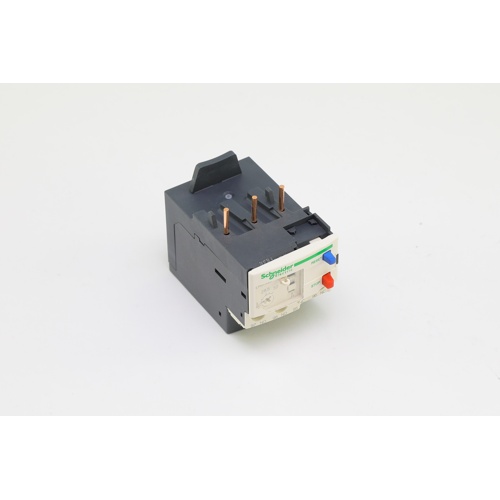

Schneider Electric (Square D) LRD32L — Class 20 LRD Overload Relay

The Schneider Electric (Square D) LRD32L is a Class 20 thermal overload relay engineered to provide dependable, precise motor protection across a wide range of industrial and commercial HVAC applications. Designed for use with TeSys D-series contactors, this overload relay offers a 23–32A adjustable current range, making it well suited for protecting three-phase motors from damaging overload conditions.

Key Features

• Adjustable current range: 23–32A
• Class 20 trip class for motors with longer start-up times
• Part of the Schneider Electric LRD (TeSys D) overload relay series
• Designed for direct mounting onto TeSys D-series contactors
• Provides reliable protection against overloads and phase loss
• Manual and automatic reset capability
• Compact, modular design for easy installation and replacement
• Integral test/stop button for on-site verification

Application

The LRD32L is ideal for protecting HVAC motors, compressors, fans, pumps, and other motor-driven equipment in commercial and light industrial environments. Its Class 20 trip characteristic accommodates motors that require extended acceleration times, reducing nuisance tripping during start-up while still delivering fast, reliable protection under true overload conditions.

Product Specifications

• SKU: LRD32L
• Brand: Schneider Electric (Square D)
• Series: TeSys LRD / Class 20
• Current Setting Range: 23–32A
• Trip Class: Class 20
• Compatible Contactors: TeSys D-series
