Description

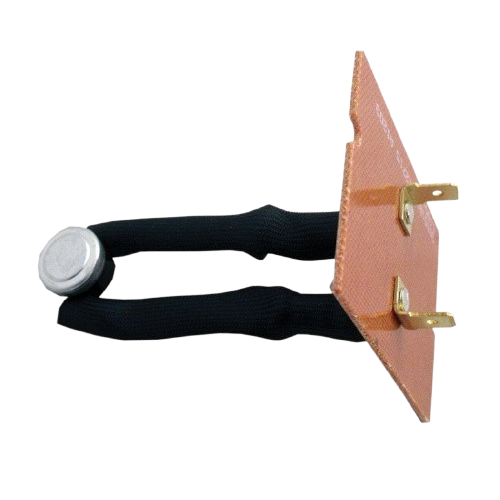

The Supco SHL508 Plenum Limit Thermostat is a high-performance, bi-metal temperature control designed for HVAC applications. This thermostat ensures safe operation by monitoring and regulating temperatures within the furnace plenum, preventing overheating and potential system damage.
Features:
- 36T Electrical Ratings
- CSA approved
- Direct OEM replacements
- Economical
- L190-20 SPST
- See Downloads section for electrical ratings (Application sheet 001)
- UL recognized
Specifications:
- Open temperature: 190°F
- Close temperature: 170°F
- Board width: 1.88″
- Board height: 2.8″
- Insertion length: 3.12″
- Resistive Amps @120V: 15A
- Resistive Amps @240V: 10A
