Description

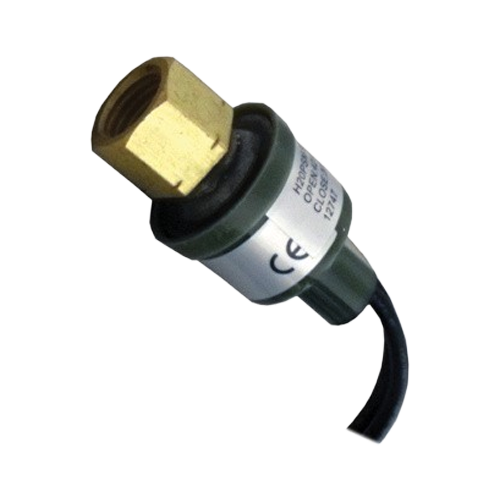

Ensure reliable protection for your refrigeration, air conditioning, and heat pump systems with the SUPCO SHP300200. This rugged, hermetically-sealed high-pressure switch is engineered for precise activation at 300 PSI and reset at 200 PSI, providing dependable safety and system longevity in even the most demanding HVAC/R applications.
Features:
- ¼” SAE 45° female flare fitting with valve core depressor
- Automatic Reset
- High pressure switch opens on pressure rise
- Life at rated load: 100,000 cycles
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Small size and light weight for direct mounting
- Snap acting stainless steel hermetically sealed sensor
- Wire is 18 AWG, 18″ long
Specifications:
- Maximum FLA: 5.8 Amps @ 120VAC
- Maximum FLA: 2.9 Amps @ 240VAC
- Maximum LRA: 34.8 Amps @ 120VAC
- Maximum LRA: 17.4 Amps @ 240VAC
- Ambient Temperature: -22°F to 275°F (-30°C to 135°C)
- Fluid Temperature: -4°F to 302°F (-20°C to 150°C
- Burst Pressure: 5000 PSI
- Close PSI: 200 PSI
- Open PSI: 300 PSI
- Tolerance: +/- 15 PSI
- DC Voltage: 6Vdc/12Vdc/36Vdc
- Agency Approvals: UL Recognized, CE
